Components [02/2017 - ]

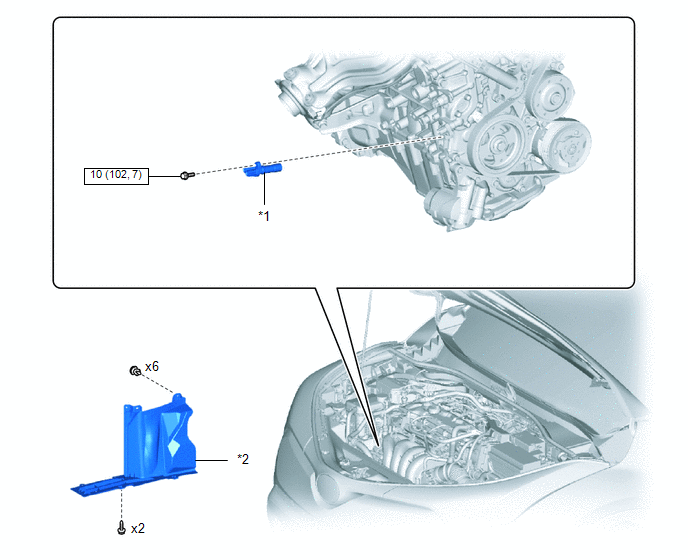

Fig 1: Crankshaft Position Sensor Replacement Components With Torque Specifications
GTY747790Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 CRANKSHAFT POSITION SENSOR *2 REAR ENGINE UNDER COVER RH
N*m (kgf*cm, ft.*lbf): Specified torque - -
