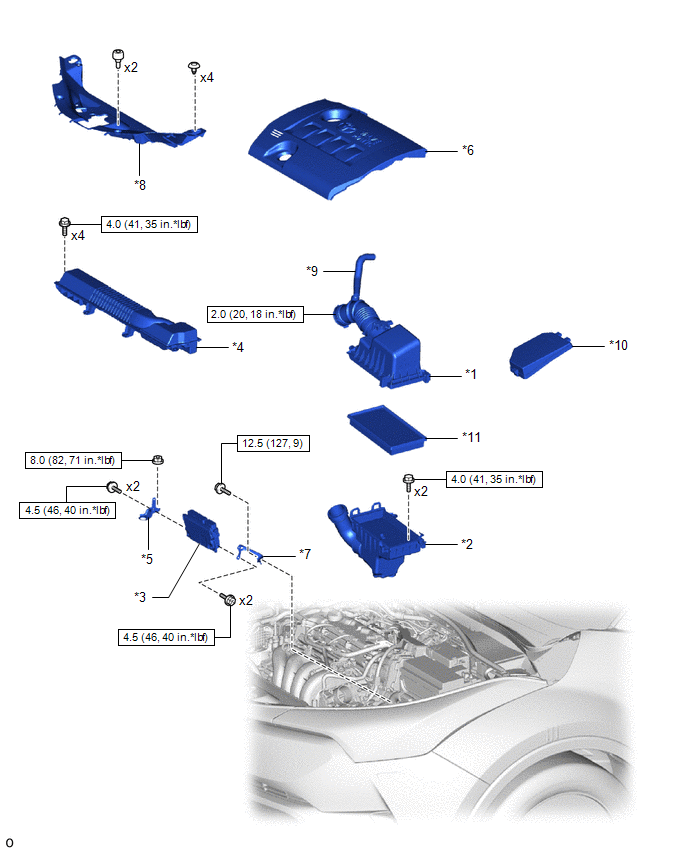

Components [02/2017 - ]
| Callout | Description | Callout | Description |
| *1 | AIR CLEANER CAP WITH AIR CLEANER HOSE | *2 | AIR CLEANER CASE SUB-ASSEMBLY |
| *3 | ECM | *4 | NO. 1 AIR CLEANER INLET |
| *5 | NO. 1 ECM BRACKET | *6 | NO. 2 CYLINDER HEAD COVER |
| *7 | NO. 2 ECM BRACKET | *8 | RADIATOR COVER |
| *9 | NO. 2 VENTILATION HOSE | *10 | NO. 1 RELAY BLOCK COVER |
| *11 | AIR CLEANER FILTER ELEMENT SUB-ASSEMBLY | - | - |
| N*m (kgf*cm, ft.*lbf): Specified torque | - | - |
