Power Steering System - Diagnostics - Introduction (Except Hybrid)
>>
Power Steering System
>>

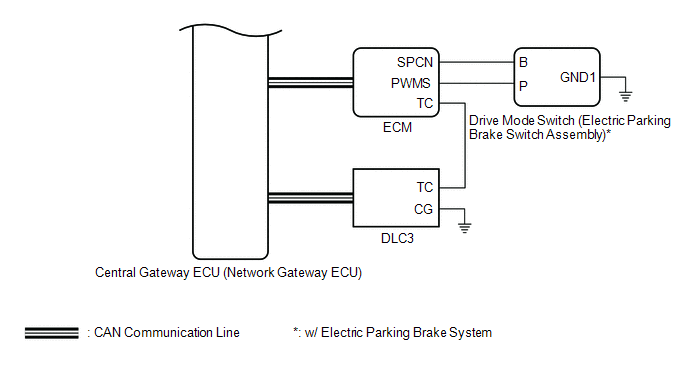

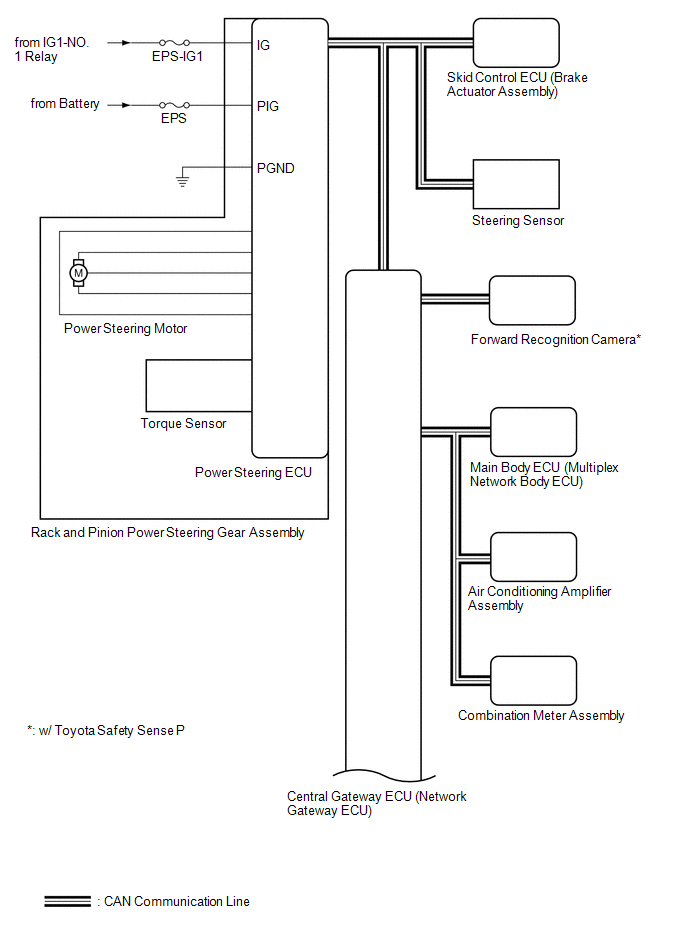

System Diagram [06/2017 - 09/2019]
>>
System Diagram [06/2017 - 09/2019]
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
System Diagram [06/2017 - 09/2019]
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
