Components [01/2019 - 09/2022]

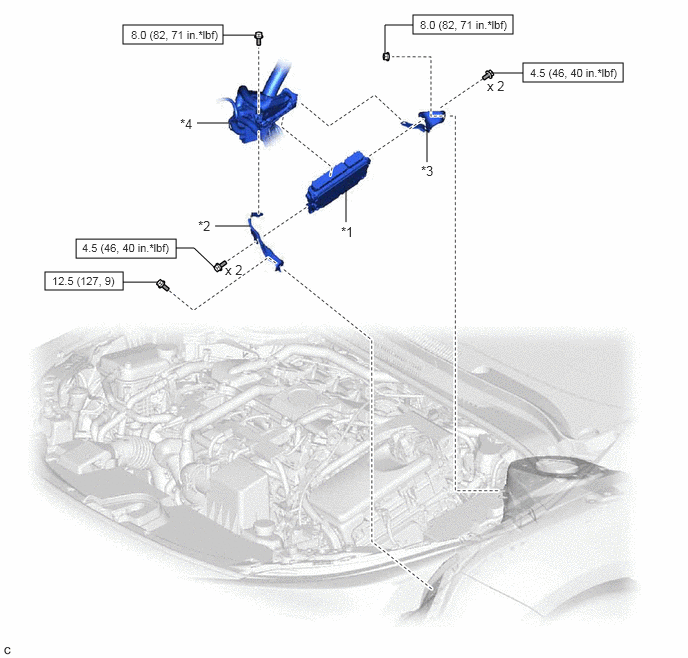

Fig 1: ECM Replacement Components With Torque Specifications [01/2019 - 09/2022]
GTY869474Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 ECM *2 NO. 1 ECM BRACKET
*3 NO. 2 ECM BRACKET *4 ENGINE WIRE
N.m (kgf/cm, ft.lbf): Specified torque - -
