System Diagram [03/2019 - 09/2019]

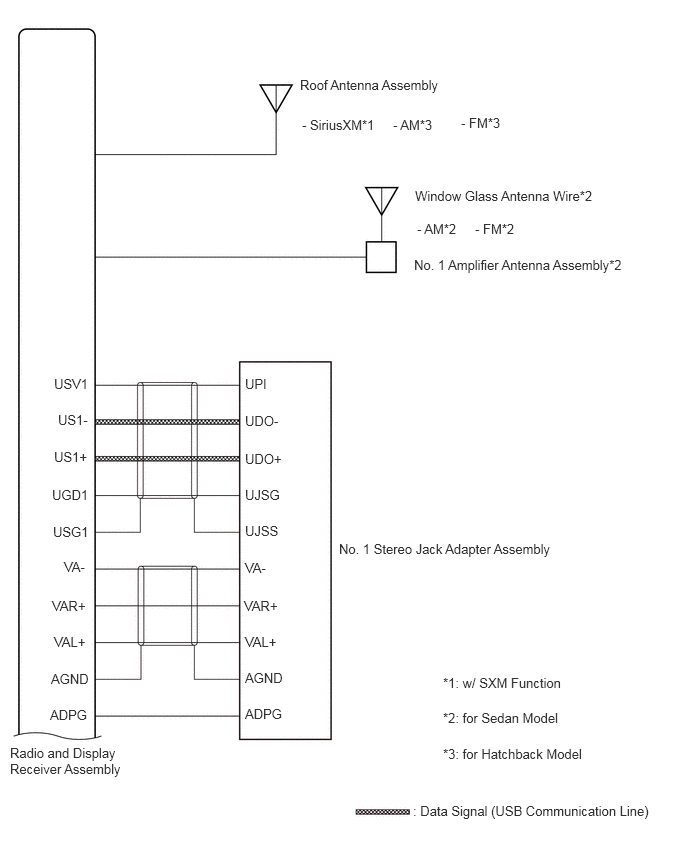

GTY876825Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

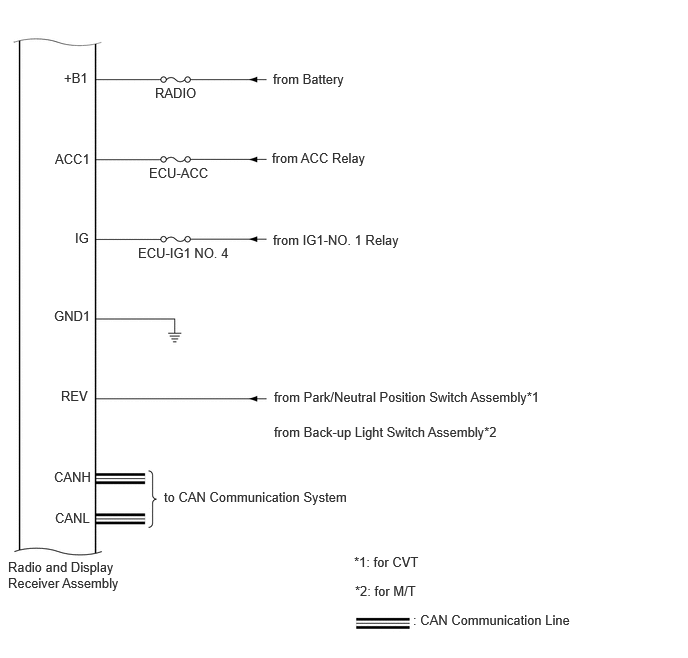

GTY876471Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

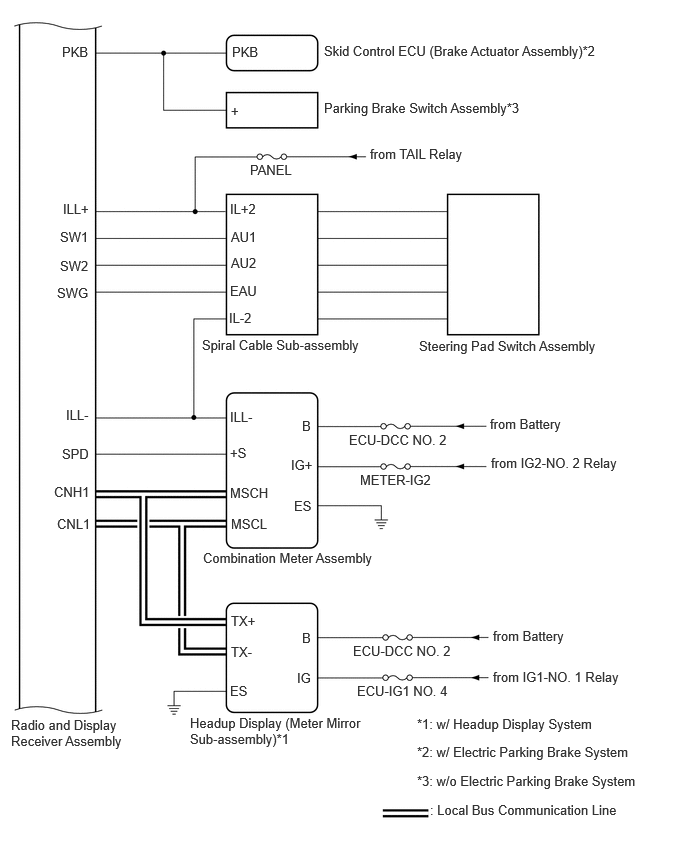

GTY898048Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

w/ Manual (SOS) Switch

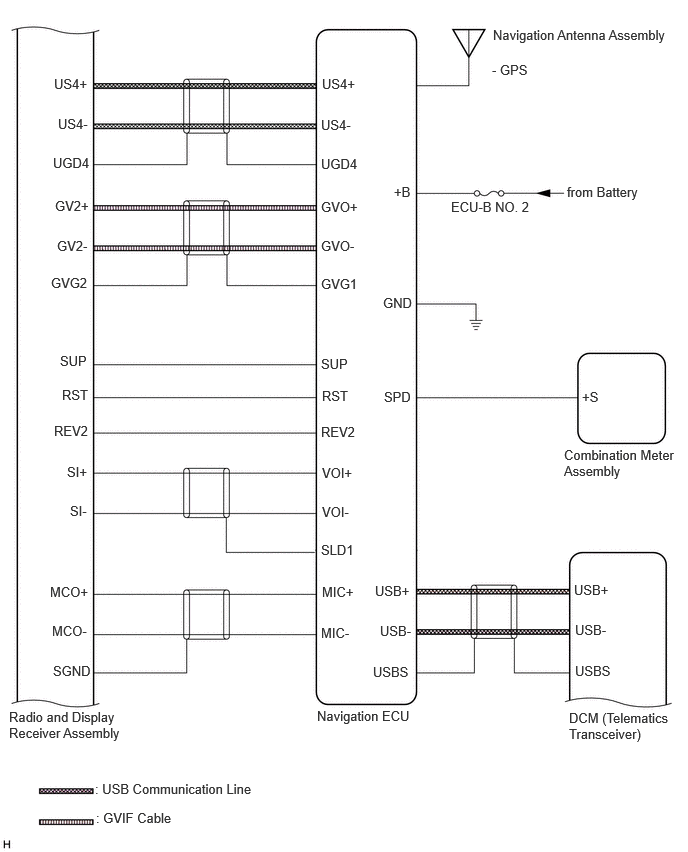

GTY929162Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

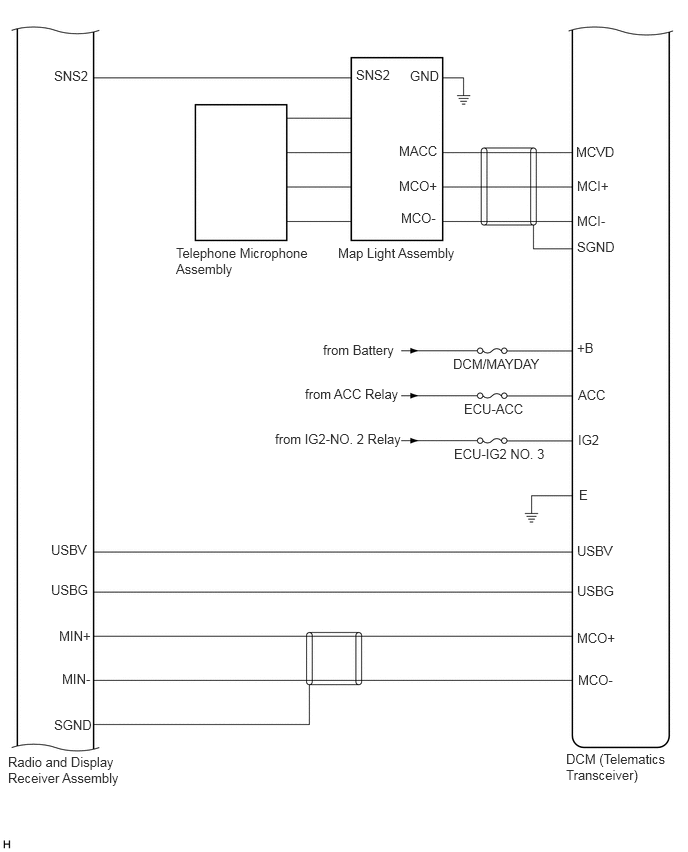

GTY901836Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

w/o Manual (SOS) Switch

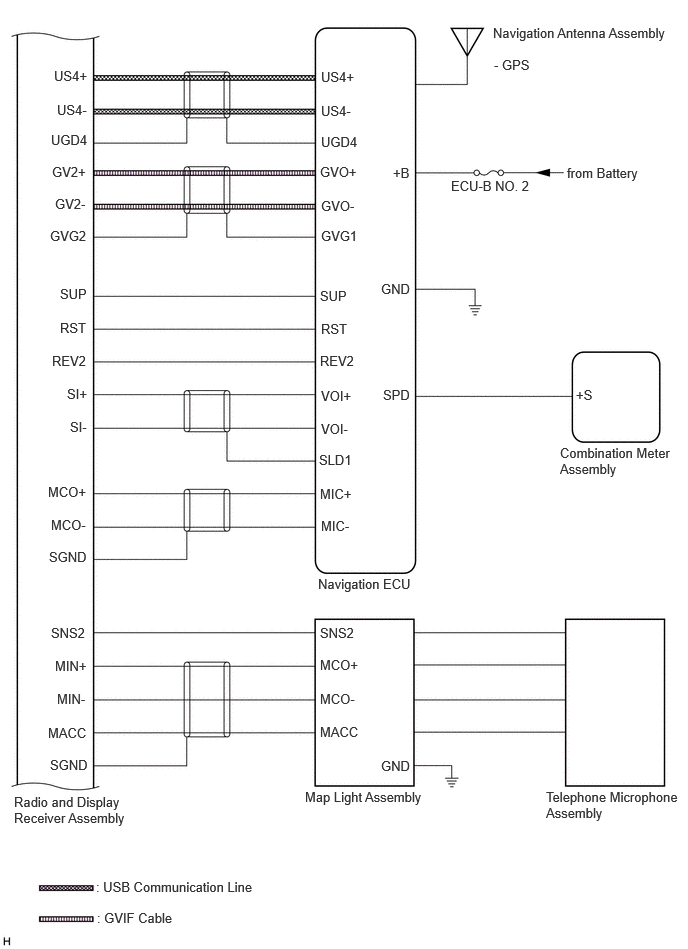

GTY933745Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

w/o Stereo Component Amplifier Assembly

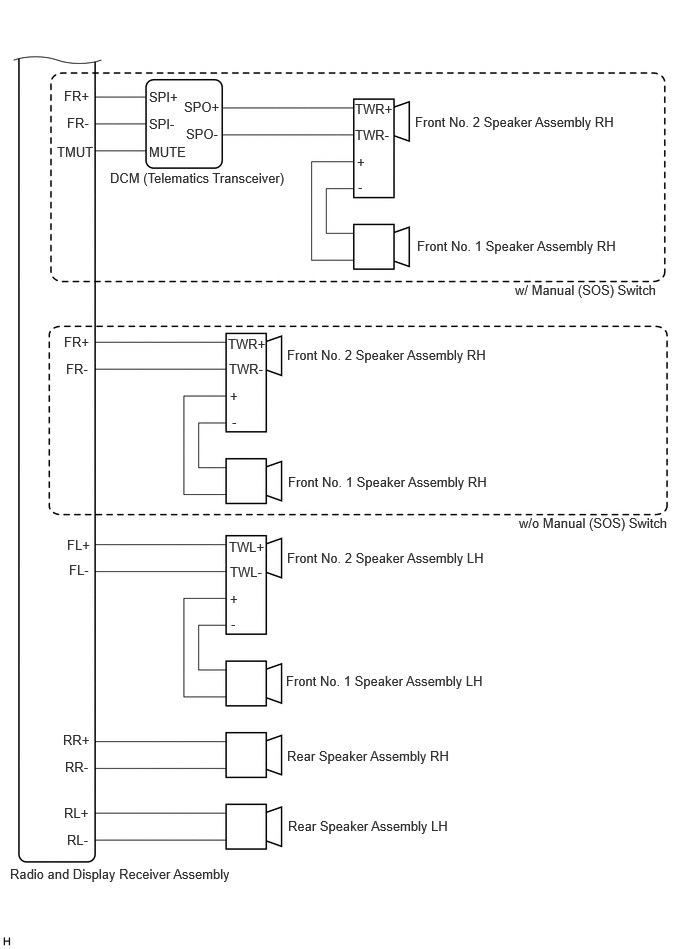

GTY915839Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

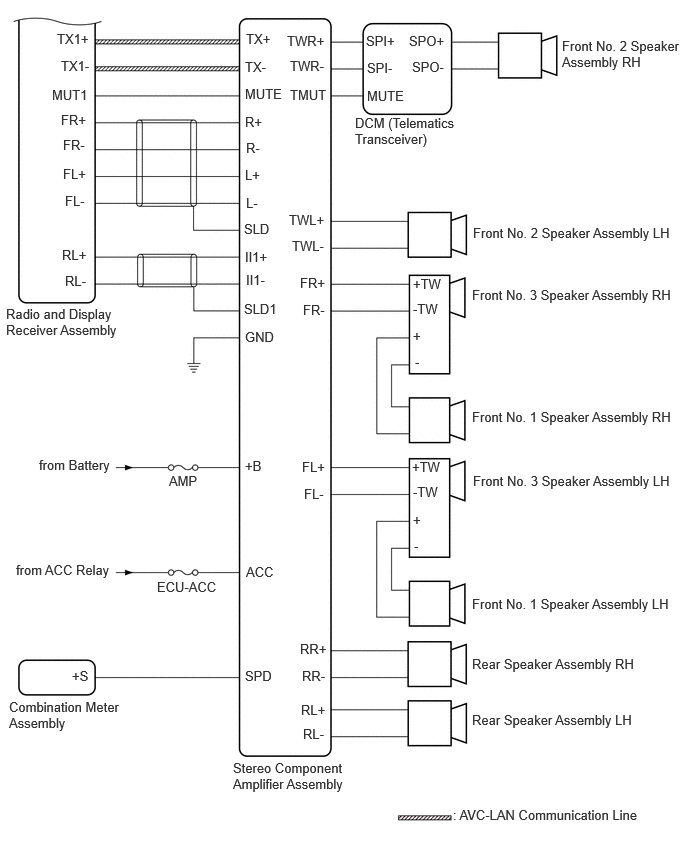

w/ Stereo Component Amplifier Assembly (for Hatchback Model)

GTY888713Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

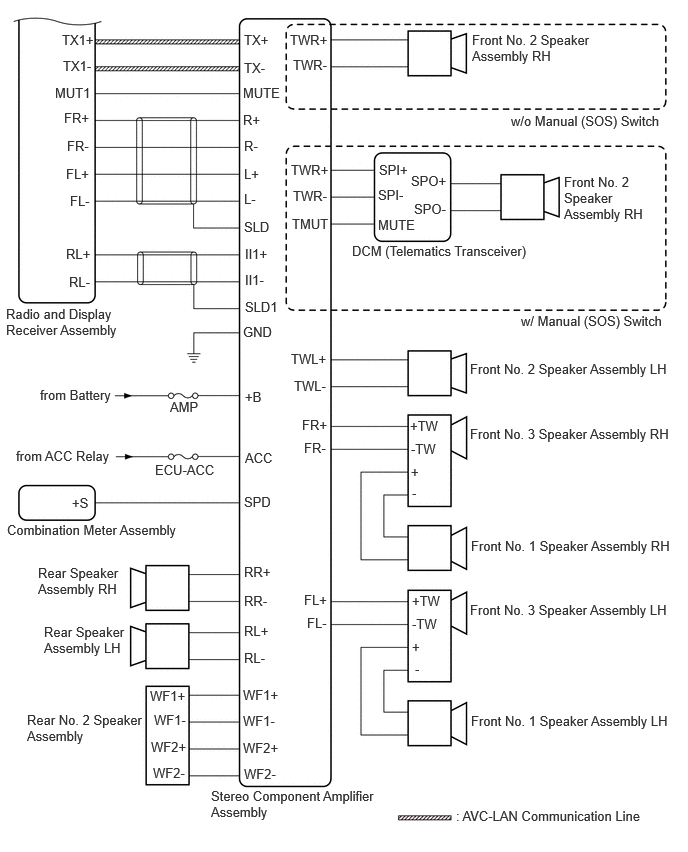

w/ Stereo Component Amplifier Assembly (for Sedan Model)

GTY937304Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
