Removal [09/2024 - ]: Procedure

REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY (for Shift Panel)
1. except Manual Transaxle:
  for M20A-FKS: Refer to PROCEDURE - Step 1

  for HV Model: Refer to PROCEDURE - Step 1

  for G16E-GTS: Refer to PROCEDURE - Step 1
2. for Manual Transaxle:
  Refer to PROCEDURE - Step 6
REMOVE LOWER CENTER INSTRUMENT PANEL FINISH PANEL (for Shift Panel)
except G16E-GTS: Refer to PROCEDURE - Step 3

for G16E-GTS: Refer to PROCEDURE - Step 3
REMOVE FRONT CONSOLE UPPER PANEL GARNISH (for Shift Panel)
except G16E-GTS: Refer to PROCEDURE - Step 5

for G16E-GTS: Refer to PROCEDURE - Step 5
REMOVE POSITION INDICATOR HOUSING ASSEMBLY (for Shift Panel except Manual Transaxle)
Refer to PROCEDURE - Step 8
REMOVE UPPER FRONT CONSOLE PANEL SUB-ASSEMBLY (for Shift Panel for Manual Transaxle)
Refer to PROCEDURE - Step 7

REMOVE VSC OFF SWITCH (COMBINATION SWITCH ASSEMBLY) (for Shift Panel)

except Manual Transaxle:

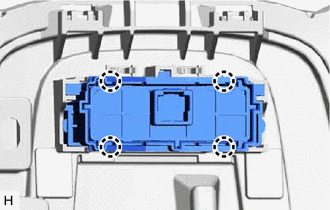

Disengage the 4 claws to remove the VSC OFF switch (combination switch assembly) from the position indicator housing assembly.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

for Manual Transaxle:

Disengage the 4 claws to remove the VSC OFF switch (combination switch assembly) from the upper front console panel sub-assembly.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

REMOVE NO. 1 INSTRUMENT SIDE PANEL (for Instrument Panel)
Refer to PROCEDURE - Step 13
REMOVE NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY (for Instrument Panel)
Refer to PROCEDURE - Step 1
DISCONNECT HOOD LOCK CONTROL LEVER SUB-ASSEMBLY (for Instrument Panel)
Refer to PROCEDURE - Step 14
REMOVE LOWER INSTRUMENT PANEL FINISH PANEL (for Instrument Panel)
Refer to PROCEDURE - Step 15

REMOVE VSC OFF SWITCH (for Instrument Panel)

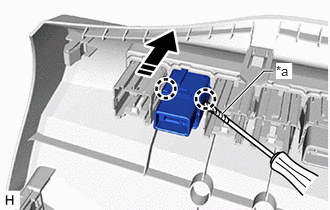

Using a screwdriver with its tip wrapped with protective tape, disengage the 2 claws and remove the VSC OFF switch from the lower instrument panel finish panel.

*a	Protective Tape
	Remove in this Direction
