System Description [08/2016 - ]

1. The Controller Area Network (CAN) is a serial data communication system for real time application. It is a vehicle multiplex communication system which has a high communication speed and the ability to detect malfunctions.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Using the CANH and CANL bus lines as a pair, CAN communication is performed using a voltage differential. (A base voltage is applied to the pair of lines and a voltage differential is created when communicating.)
3. Many ECUs or sensors installed to the vehicle operate by sharing information and communicating with each other.
4. The V bus has termination circuits with a resistor of 60 Ω, and the bus 2, bus 3 and bus 5 each have termination circuits with two resistors of 120 Ω.

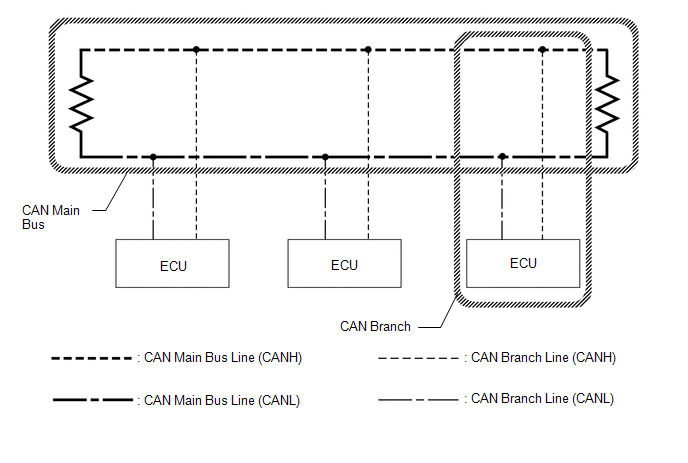

1. Main bus
   1. The main bus is a wire harness between the two terminating resistors on the bus. This is the main bus in the CAN communication system.
2. Branch
   1. A branch is a wire harness which diverges from the main bus to an ECU or sensor.
3. Terminating resistors
   1. Two resistors of 120 Ω are installed in parallel across the ends of the CAN main bus lines. They are called terminating resistors. These resistors allow the changes of the voltage differential between the CAN bus lines to be accurately judged. To allow proper function of CAN communication, it is necessary to have both terminating resistors installed. Since the two resistors are installed in parallel, this results in a measurement of approximately 60 Ω.

1. Bus 2
   1. Central gateway ECU (network gateway ECU)
   2. Combination meter assembly
   3. Certification ECU (smart key ECU assembly)*1
   4. Airbag sensor assembly
   5. Power steering ECU assembly
   6. Air conditioning amplifier assembly*2
   7. Skid control ECU (brake actuator assembly)
   8. Steering sensor
   9. Main body ECU (multiplex network body ECU)
   10. ECM
2. Bus 3
   1. Central gateway ECU (network gateway ECU)
   2. Navigation receiver assembly*3
   3. Radio and display receiver assembly*4
3. Bus 5
   1. Central gateway ECU (network gateway ECU)
   2. Driving support ECU assembly
   3. Forward recognition camera
   4. Millimeter wave radar sensor assembly

HINT:

• *1: w/ Smart Key System
• *2: w/ Air Conditioning System
• *3: for Navigation Receiver Type
• *4: for Radio and Display Type

1. The V bus has a termination circuit with a resistor of 60 Ω.
2. The bus 2, bus 3 and bus 5 each have termination circuits with two resistors of 120 Ω.

1. DTCs for the CAN communication system can be checked using the Techstream. The DLC3 is connected to the CAN communication system, but no DTCs exist regarding problems in the DLC3 or the DLC3 branch lines. If there is a malfunction in the DLC3 or the DLC3 branch lines, ECUs on the CAN cannot output DTCs to the Techstream.

HINT:

Refer to DIAGNOSIS SYSTEM [08/2016 - ]

1. In the CAN communication system, the shape of connectors connected to the CAN junction connector which has an earth terminal are the same. The connectors connected to the CAN junction connector can be distinguished by the colors of the bus lines and the connecting side of the junction connector.

   HINT:

   For bus line color or the shape of connectors, refer to TERMINALS OF ECU [08/2016 - ] .
