DTC B1543: Extension Module Disconnected 2 [01/2019 - 03/2019]: Procedure
- CHECK MAP SCREEN
- Turn the engine switch on (ACC) and wait for 90 seconds.
- Press the "MAP" switch and check that the map screen is displayed normally.
Result
Result Proceed to Map screen is displayed normally A Map screen is not displayed normally B HINT:
- This DTC may be stored due to environmental reasons such as electrical noise or interference.
- Clear past DTCs when the map screen is displayed normally. (Codes stored due to past environmental factors)
Result:
A
USE SIMULATION METHOD TO CHECK. Refer to HOW TO PROCEED WITH TROUBLESHOOTING [06/2018 - ]
Result:
B
See step 2
- CHECK DTC
- Clear the DTCs.
Body Electrical > Navigation System > Clear DTCs
- Turn the engine switch off.
- Turn the engine switch on (IG) and wait for 90 seconds.
- Recheck for DTCs and check that no DTCs are output.
Body Electrical > Navigation System > Trouble Codes
OK
No DTCs are output.
Result
Result Proceed to OK A NG (w/ Manual (SOS) Switch) B NG (w/o Manual (SOS) Switch) C
Result:
A
USE SIMULATION METHOD TO CHECK. Refer to HOW TO PROCEED WITH TROUBLESHOOTING [06/2018 - ]
Result:
C
See step 7
Result:
B
See step 3
- Clear the DTCs.
- CHECK HARNESS AND CONNECTOR (NAVIGATION ECU - BATTERY AND BODY GROUND)
- Disconnect the I69 navigation ECU connector.
*a Front view of wire harness connector
(to Navigation ECU) - Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Condition Specified Condition I69-23 (GND) - Body ground Always Below 1 Ω - Measure the voltage according to the value(s) in the table below.
Standard Voltage
Tester Connection Condition Specified Condition I69-10 (+B) - Body ground Always 11 to 14 V Result
Proceed to OK NG
Result:
NG
REPAIR OR REPLACE HARNESS OR CONNECTOR
Result:
OK
See step 4
- Disconnect the I69 navigation ECU connector.
- CHECK HARNESS AND CONNECTOR (RADIO AND DISPLAY RECEIVER ASSEMBLY - NAVIGATION ECU)
- Disconnect the t3 navigation ECU connector.
*a Front view of wire harness connector
(to Radio and Display Receiver Assembly)*b Front view of wire harness connector
(to Navigation ECU) - Disconnect the t5 radio and display receiver assembly connector.
- Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Condition Specified Condition t3-4 (US4+) - t5-1 (US4+) Always Below 1 Ω t3-5 (US4-) - t5-2 (US4-) Always Below 1 Ω t3-6 (UGD4) - t5-3 (UGD4) Always Below 1 Ω Result
Proceed to OK NG
Result:
NG
REPAIR OR REPLACE HARNESS OR CONNECTOR
Result:
OK
See step 5
- Disconnect the t3 navigation ECU connector.
- REPLACE NAVIGATION ECU
- Replace the navigation ECU with a new one.
Refer to REMOVAL [06/2018 - 03/2019]
Result
Proceed to NEXT
Result:
NEXT
See step 6
- Replace the navigation ECU with a new one.
- CHECK DTC
- Clear the DTCs.
Body Electrical > Navigation System > Clear DTCs
- Turn the engine switch off.
- Turn the engine switch on (IG) and wait for 90 seconds.
- Recheck for DTCs and check that no DTCs are output.
Body Electrical > Navigation System > Trouble Codes
OK
No DTCs are output.
Result
Proceed to OK NG
Result:
OK
END (NAVIGATION ECU IS DEFECTIVE)
Result:
NG
REPLACE RADIO AND DISPLAY RECEIVER ASSEMBLY. Refer to REMOVAL [01/2019 - 03/2019]
- Clear the DTCs.
- CHECK HARNESS AND CONNECTOR (NAVIGATION ECU - BATTERY AND BODY GROUND)
- Disconnect the I69 navigation ECU connector.

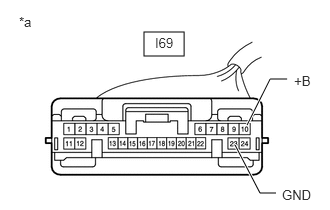

*a Front view of wire harness connector
(to Navigation ECU) - Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Condition Specified Condition I69-23 (GND) - Body ground Always Below 1 Ω - Measure the voltage according to the value(s) in the table below.
Standard Voltage
Tester Connection Condition Specified Condition I69-10 (+B) - Body ground Always 11 to 14 V Result
Proceed to OK NG
Result:
NG
REPAIR OR REPLACE HARNESS OR CONNECTOR
Result:
OK
See step 8
- Disconnect the I69 navigation ECU connector.
- CHECK HARNESS AND CONNECTOR (RADIO AND DISPLAY RECEIVER ASSEMBLY - NAVIGATION ECU)
- Disconnect the s1 navigation ECU connector.

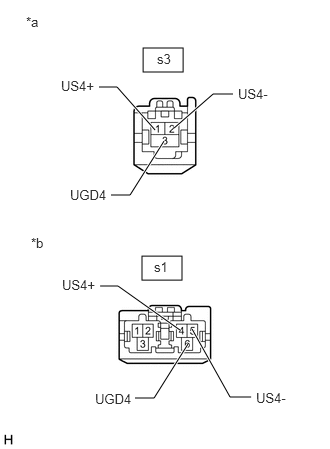

*a Front view of wire harness connector
(to Radio and Display Receiver Assembly)*b Front view of wire harness connector
(to Navigation ECU) - Disconnect the s3 radio and display receiver assembly connector.
- Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Condition Specified Condition s1-4 (US4+) - s3-1 (US4+) Always Below 1 Ω s1-5 (US4-) - s3-2 (US4-) Always Below 1 Ω s1-6 (UGD4) - s3-3 (UGD4) Always Below 1 Ω Result
Proceed to OK NG
Result:
NG
REPAIR OR REPLACE HARNESS OR CONNECTOR
Result:
OK
See step 9
- Disconnect the s1 navigation ECU connector.
- REPLACE NAVIGATION ECU
- Replace the navigation ECU with a new one.
Refer to REMOVAL [06/2018 - 03/2019]
Result
Proceed to NEXT
Result:
NEXT
See step 10
- Replace the navigation ECU with a new one.
- CHECK DTC
- Clear the DTCs.
Body Electrical > Navigation System > Clear DTCs
- Turn the engine switch off.
- Turn the engine switch on (IG) and wait for 90 seconds.
- Recheck for DTCs and check that no DTCs are output.
Body Electrical > Navigation System > Trouble Codes
OK
No DTCs are output.
Result
Proceed to OK NG
Result:
OK
END (NAVIGATION ECU IS DEFECTIVE)
Result:
NG
REPLACE RADIO AND DISPLAY RECEIVER ASSEMBLY. Refer to REMOVAL [01/2019 - 03/2019]
- Clear the DTCs.
