Components [01/2019 - 11/2022]

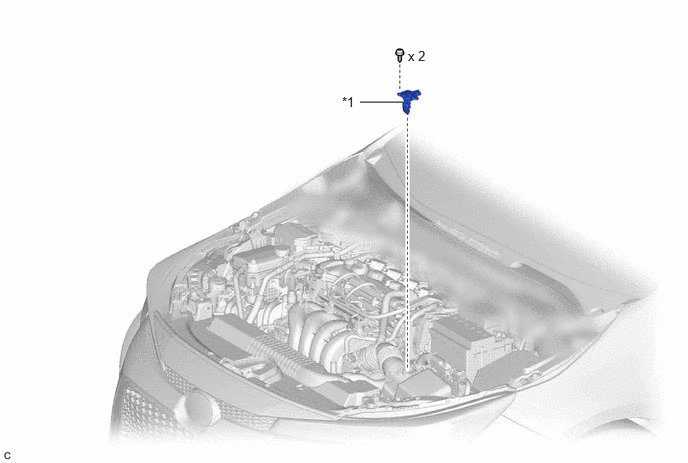

Fig 1: Mass Air Flow Meter Replacement Components
GTY845127Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 MASS AIR FLOW METER SUB-ASSEMBLY - -
