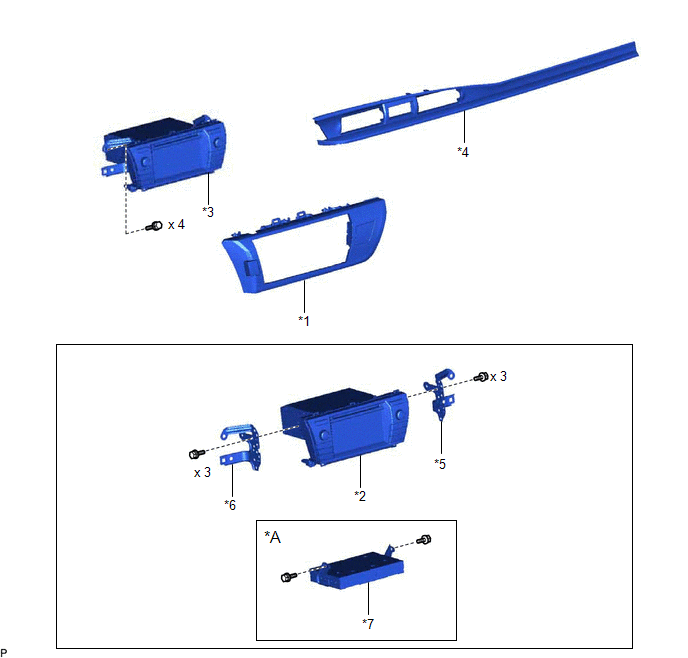

Components [08/2013 - 08/2016]: Illustration
WARNING: This page is about a different car, the 2018 Toyota Corolla, 2017 Toyota Corolla, 2016 Toyota Corolla, 2015 Toyota Corolla, and 2014 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.
| *A | w/ Satellite Radio | - | - |
| *1 | CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY | *2 | NAVIGATION RECEIVER ASSEMBLY |
| *3 | NAVIGATION RECEIVER ASSEMBLY WITH BRACKET | *4 | NO. 1 INSTRUMENT PANEL GARNISH SUB-ASSEMBLY |
| *5 | NO. 1 RADIO BRACKET | *6 | NO. 2 RADIO BRACKET |
| *7 | STEREO COMPONENT TUNER ASSEMBLY WITH BRACKET | - | - |
