Removal [08/2016 - ]: Procedure
WARNING: This page is about a different car, the 2018 Toyota Corolla, 2017 Toyota Corolla, 2016 Toyota Corolla, 2015 Toyota Corolla, and 2014 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.
- PRECAUTION NOTE:
After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) battery terminal notices before proceeding with work.
Refer to PRECAUTION [08/2016 - ]
Refer to PRECAUTION [08/2016 - ]
- DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL NOTE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected.
Refer to INITIALIZATION [08/2016 - 08/2017] Refer to INITIALIZATION [08/2017 - ]
- REMOVE CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY
Refer to PROCEDURE - Step 8 Refer to PROCEDURE - Step 8

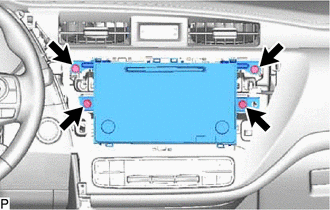

- REMOVE NAVIGATION RECEIVER ASSEMBLY WITH BRACKET

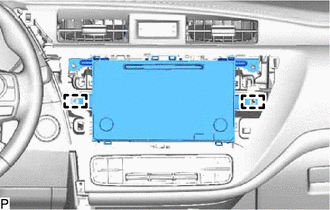

- DISCONNECT STEREO COMPONENT TUNER ASSEMBLY WITH WIRE (w/ Satellite Radio)
Refer to PROCEDURE - Step 3
- REMOVE NO. 1 RADIO BRACKET
Refer to PROCEDURE - Step 4
- REMOVE NO. 2 RADIO BRACKET
Refer to PROCEDURE - Step 5
- REMOVE NAVIGATION RECEIVER ASSEMBLY
- REMOVE STEREO COMPONENT TUNER ASSEMBLY WITH WIRE (w/ Satellite Radio)
