Removal [08/2013 - ]: Procedure

WARNING: This page is about a different car, the 2018 Toyota Corolla, 2017 Toyota Corolla, 2016 Toyota Corolla, 2015 Toyota Corolla, and 2014 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE LOWER STEERING COLUMN COVER
    NOTE:

    Removing the lower steering column cover in the incorrect order will cause the parts to break.

    1. Release the tilt lever, and fully extend and lower the steering column.
    2. Lock the tilt lever.

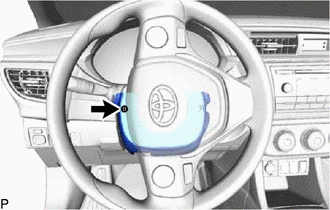

    3. Turn the steering wheel assembly to the left and remove the screw.
      GTY453382Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

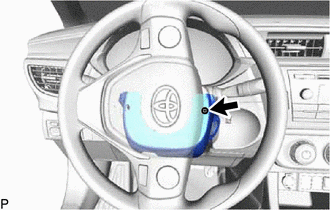

    4. Turn the steering wheel assembly to the right and remove the screw.
      GTY437502Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Turn back the steering wheel assembly to the center.

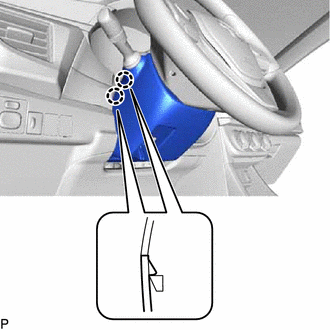

    6. Disengage the 2 claws.
      GTY437503Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

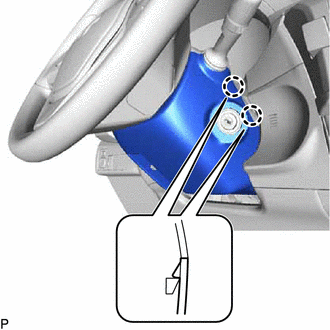

    7. Disengage the 2 claws.
      GTY437510Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

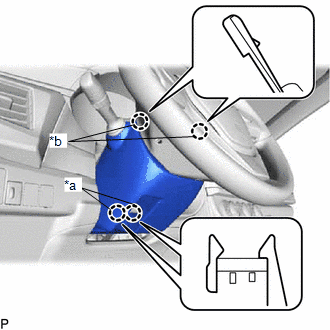

    8. Insert your fingers into the opening of the tilt lever of the lower steering column cover and disengage the 2 claws <A>.
      GTY428372Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Claw <A>
      *b Claw <B>

      HINT:

      Spread the claw to disengage them.

    9. Disengage the 2 claws <B> to remove the lower steering column cover.
  2. REMOVE UPPER STEERING COLUMN COVER

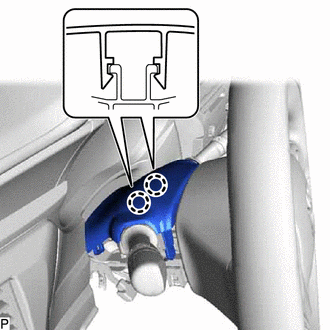

    1. Disengage the 2 claws and remove the upper steering column cover.
      GTY437512Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE WINDSHIELD WIPER SWITCH ASSEMBLY

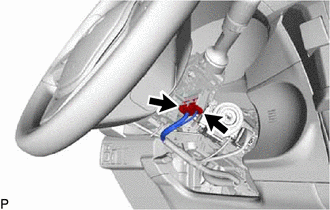

    1. Disconnect each connector.
      GTY437513Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Turn the steering wheel assembly to the right.

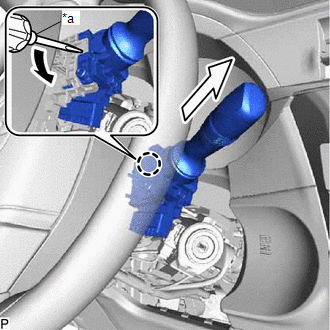

    3. Using a screwdriver, disengage the claw and remove the windshield wiper switch assembly as shown in the illustration.
      NOTE:

      If the claw is pushed with excessive force, it may break.

      GTY435985Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Screwdriver
