On-Vehicle Inspection [08/2016 - ]: Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2019 Toyota Corolla, 2018 Toyota Corolla, 2017 Toyota Corolla, 2016 Toyota Corolla, and 2015 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSPECT STOP LIGHT CONTROL RELAY (STOP LP)
    1. Remove the stop light control relay (STOP LP relay).
    2. Check both the relay case and the terminal for deformation and corrosion.

      OK

      No deformation or corrosion.

    3. Measure the resistance according to the value(s) in the table below.

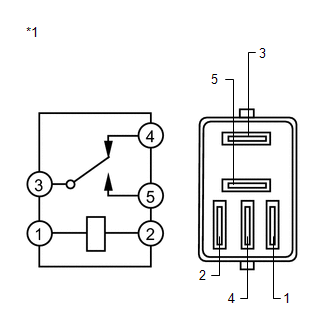

      GTY722792Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Stop Light Control Relay (STOP LP)

      Standard Resistance

      Tester Connection Condition Specified Condition
      3 - 4 Voltage is not applied between terminals 1 and 2 Below 1 Ω
      3 - 5 Voltage is not applied between terminals 1 and 2 10 kΩ or higher
      3 - 4 Voltage is applied between terminals 1 and 2 10 kΩ or higher
      3 - 5 Voltage is applied between terminals 1 and 2 Below 1 Ω

      If the result is not as specified, replace the stop light control relay (STOP LP relay).
