Components [09/2022 - ]

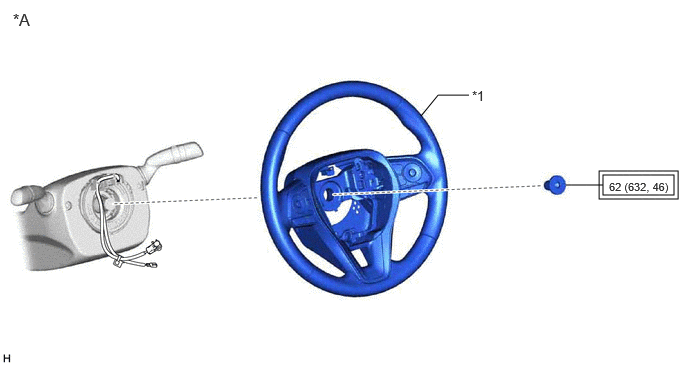

Fig 1: Steering Column Assembly Replacement Components With Torque Specifications [09/2022 - ] (1 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*A	for G16E-GTS	-	-
*1	STEERING WHEEL ASSEMBLY	-	-
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf)	-	-

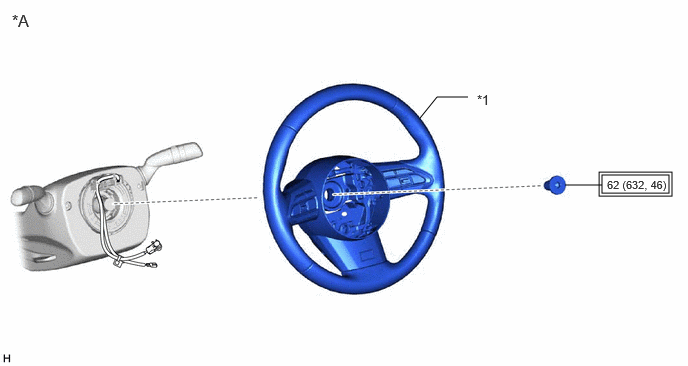

Fig 2: Steering Column Assembly Replacement Components With Torque Specifications [09/2022 - ] (2 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*A	except G16E-GTS	-	-
*1	STEERING WHEEL ASSEMBLY	-	-
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf)	-	-

Fig 3: Steering Column Assembly Replacement Components [09/2022 - ] (3 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	LOWER STEERING COLUMN COVER SUB-ASSEMBLY	*2	TURN SIGNAL SWITCH ASSEMBLY WITH SPIRAL CABLE SUB-ASSEMBLY
*3	UPPER STEERING COLUMN COVER	-	-

Fig 4: Steering Column Assembly Replacement Components [09/2022 - ] (4 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	FRONT CONSOLE UPPER PANEL GARNISH	*2	FRONT NO. 1 CONSOLE BOX INSERT

Fig 5: Steering Column Assembly Replacement Components [09/2022 - ] (5 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	NO. 1 AIR DUCT	-	-
•	Non-reusable part	-	-

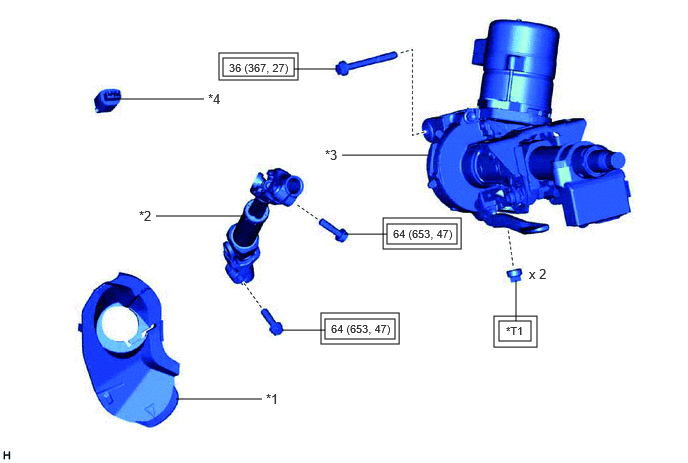

Fig 6: Steering Column Assembly Replacement Components With Torque Specifications [09/2022 - ] (6 Of 8)

Callout	Description	Callout	Description
*1	COLUMN HOLE COVER SILENCER SHEET	*2	NO. 2 STEERING INTERMEDIATE SHAFT ASSEMBLY
*3	STEERING COLUMN ASSEMBLY	*4	STOP LIGHT SWITCH ASSEMBLY
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf)	*T1	for G16E-GTS: 70 N.m (714 kgf/cm, 52 ft.lbf) except G16E-GTS: 36 N.m (367 kgf/cm, 27 ft.lbf)

Fig 7: Steering Column Assembly Replacement Components With Torque Specifications [09/2022 - ] (7 Of 8)

Callout	Description	Callout	Description
*A	w/o Smart Key System	*B	w/ Smart Key System with Steering Lock Actuator Assembly
*1	ELECTRIC POWER STEERING MOTOR SHAFT DAMPER	*2	POWER STEERING ECU WITH MOTOR ASSEMBLY
*3	STEERING LOCK ACTUATOR ASSEMBLY	*4	TRANSPONDER KEY COIL
*5	UPPER STEERING COLUMN BRACKET WITH SWITCH ASSEMBLY	*6	ELECTRIC POWER STEERING COLUMN SUB-ASSEMBLY
*7	UPPER STEERING COLUMN CLAMP	*8	STEERING LOCK SET BOLT
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf)	•	Non-reusable part
	Grease	-	-

Fig 8: Steering Column Assembly Replacement Components [09/2022 - ] (8 Of 8)

Callout	Description	Callout	Description
*A	w/o Smart Key System	-	-
*1	IGNITION OR STARTER SWITCH ASSEMBLY	*2	IGNITION SWITCH LOCK CYLINDER ASSEMBLY
*3	UN-LOCK WARNING SWITCH ASSEMBLY	*4	UPPER STEERING COLUMN BRACKET ASSEMBLY
