Disassembly [06/2018 - 01/2019]: Procedure

REMOVE STEERING LOCK ACTUATOR ASSEMBLY

Secure the steering column assembly in a vise between aluminum plates.
NOTE:
Do not overtighten the vise.

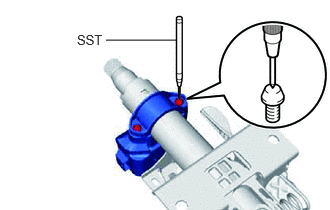

Using SST, strike a punch mark for drilling in the center of the steering lock set bolt.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

SST: 09622-00010

NOTE:

When striking the punch mark, in order to prevent impact force from being applied to the steering lock actuator assembly, do not use a normal center punch.

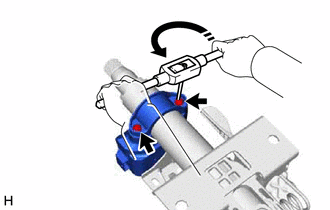

Using a drill, drill a hole in the 2 steering lock set bolts and insert a screw extractor.

Using the screw extractor, remove the 2 steering lock set bolts, upper steering column clamp and steering lock actuator assembly.

REMOVE POWER STEERING ECU WITH MOTOR ASSEMBLY
Refer to PROCEDURE - Step 3
REMOVE ELECTRIC POWER STEERING MOTOR SHAFT DAMPER
Refer to PROCEDURE - Step 4
