Components [12/2019 - 10/2022]

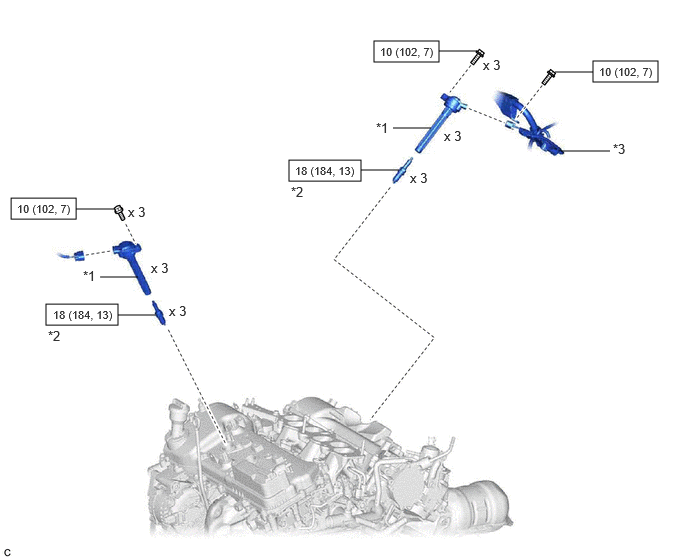

Fig 1: Ignition Coil And Spark Plug Replacement Components With Torque Specifications [12/2019 - 10/2022]
GTY900696Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 IGNITION COIL ASSEMBLY *2 SPARK PLUG
*3 ENGINE WIRE - -
N.m (kgf/cm, ft.lbf): Specified torque - -
