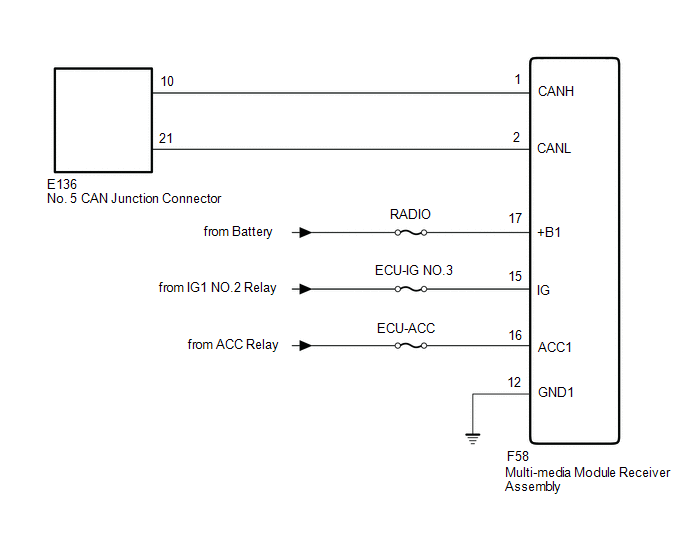

Multi-media Module Receiver Assembly Communication Stop Mode [08/2015 - ]: Wiring Diagram

GTY562314Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
