Installation [08/2015 - ]: Procedure

  1. INSTALL NO. 2 STEERING INTERMEDIATE SHAFT

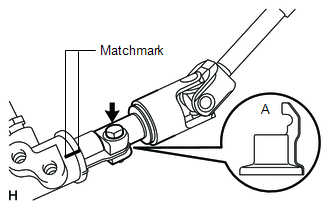

    1. Align the part of the dust cover labeled A with the No. 2 steering intermediate shaft, and install the No. 2 steering intermediate shaft assembly to the power steering link assembly.
      GTY560387Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      Be careful not to damage the dust cover.

    2. Install the bolt.

      Torque: 35 N*m (357 kgf*cm, 26 ft.*lbf)

  2. INSTALL STEERING COLUMN HOLE COVER SUBASSEMBLY
    1. Install the 4 bolts and nut.

      Torque: 5.0 N*m (51 kgf*cm, 44 in.*lbf)

      NOTE:

      Do not fold back the boot part of the steering hole cover or extend it excessively. if it is extended excessively, return it to its original position.

    2. Install the clamp to the steering column hole cover.
  3. CONNECT STEERING ACTUATOR ASSEMBLY

    (Refer to PROCEDURE - Step 2 )

  4. INSTALL STEERING COLUMN ASSEMBLY

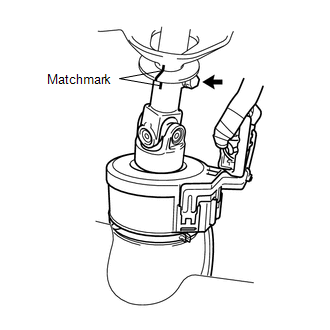

    1. Align the matchmarks on the steering actuator assembly and the steering column assembly.
      GTY556529Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the bolt.

      Torque: 35 N*m (357 kgf*cm, 26 ft.*lbf)

    3. Install the steering column with the 4 nuts.

      Torque: 26 N*m (265 kgf*cm, 19 ft.*lbf)

  5. INSTALL NO. 3 AIR DUCT SUBASSEMBLY

    Refer to PROCEDURE - Step 6

  6. CONNECT WIRE HARNESS PROTECTOR AND WIRE HARNESS
    1. Attach the 2 claws and 2 harness clamps and connect the wire harness protector and wire harness.
  7. INSTALL NO. 1 LOWER INSTRUMENT PANEL AIRBAG ASSEMBLY

    (Refer to INSTALLATION [08/2015 - ] )

  8. INSTALL COMBINATION SWITCH ASSEMBLY WITH SPIRAL CABLE SUBASSEMBLY
    1. Attach the 3 claws to install the combination switch assembly with spiral cable subassembly to the steering column assembly.
    2. Connect connectors to the combination switch assembly with spiral cable subassembly.
  9. INSTALL UPPER STEERING COLUMN COVER
    1. Attach the 2 guide pin and claw.
    2. Attach the 4 clips and 2 claws to install the upper steering column cover onto the meter hood spacer.
  10. INSTALL LOWER STEERING COLUMN COVER
    1. Attach the 4 claws to install the lower steering column cover.
      NOTE:

      Do not damage the tilt and telescopic switch.

    2. Install the 3 screws.
  11. ADJUST SPIRAL CABLE SUBASSEMBLY

    (Refer to PROCEDURE - Step 4 )

  12. INSTALL STEERING WHEEL ASSEMBLY

    (Refer to INSTALLATION [08/2015 - ] )

  13. CHECK FRONT WHEELS FACING STRAIGHT AHEAD
  14. INSTALL FRONT WHEEL
  15. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
    NOTE:

    Reset the AUTO TILT AWAY function setting to the previous condition by changing the customize parameter (Refer to CUSTOMIZE PARAMETERS [08/2015 - ] ).

  16. CHECK SRS WARNING LIGHT

    (Refer to DIAGNOSIS SYSTEM [08/2015 - ] )

  17. PERFORM VARIABLE GEAR RATIO STEERING SYSTEM CALIBRATION

    (Refer to CALIBRATION [08/2015 - ] )
