Parts Location [08/2015 - ]: Illustration

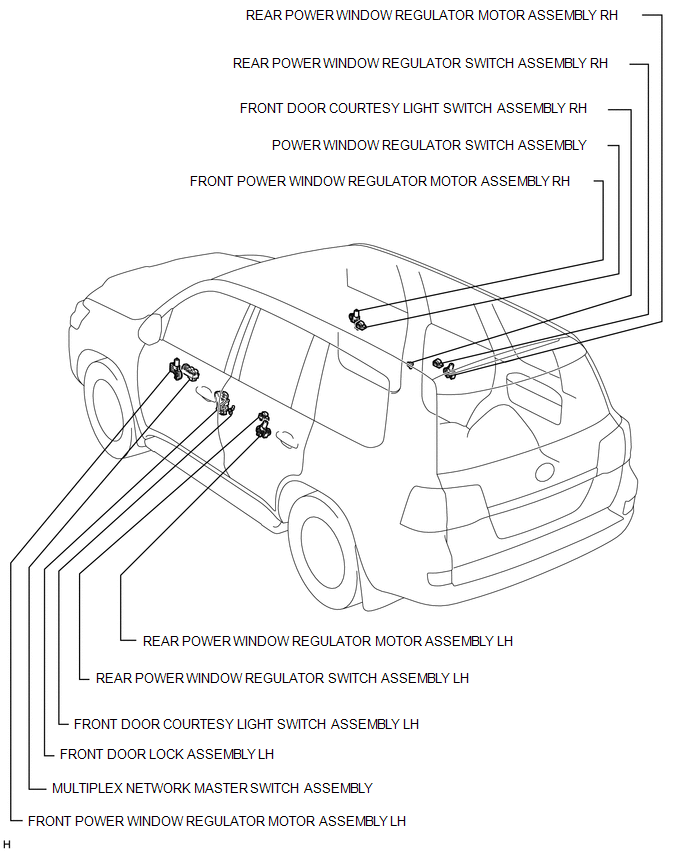

GTY586630Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

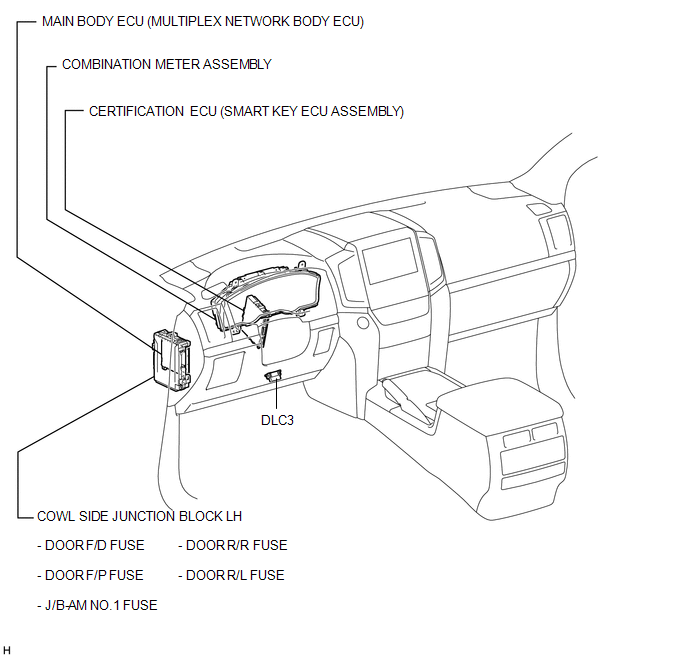

GTY548399Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
