Components [08/2015 - ]

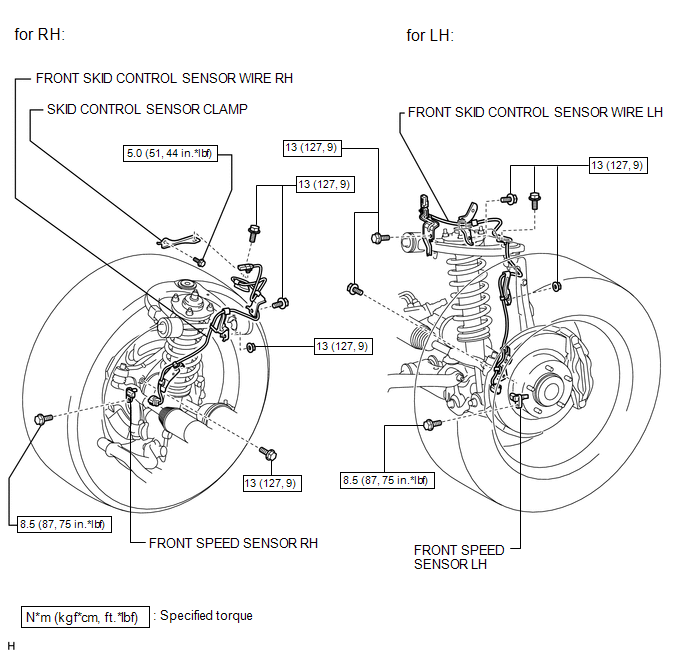

Fig 1: Front Speed Sensor Replacement Components With Torque Specifications
GTY565804Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
