Installation [08/2015 - ]: Procedure

INSTALL SKID CONTROL BUZZER ASSEMBLY

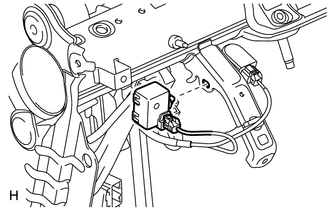

Connect the buzzer connector.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NOTE:

Securely connect the connector.

Attach the clamp to install the buzzer.
NOTE:
- Securely insert the clamp into the bracket.
- If the buzzer is dropped, replace it.

INSTALL NO. 1 SWITCH HOLE BASE
Refer to PROCEDURE - Step 28
INSTALL LOWER NO. 1 INSTRUMENT PANEL FINISH PANEL
Refer to PROCEDURE - Step 29
INSTALL NO. 1 INSTRUMENT PANEL UNDER COVER SUBASSEMBLY
Refer to PROCEDURE - Step 31
INSTALL COWL SIDE TRIM BOARD LH
Refer to PROCEDURE - Step 30
INSTALL FRONT DOOR SCUFF PLATE LH
Refer to PROCEDURE - Step 75 [08/2015 - 08/2017] Refer to PROCEDURE - Step 78 [08/2017 - 08/2019] Refer to PROCEDURE - Step 85 [08/2019 - ]
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
NOTE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected (Refer to INITIALIZATION [08/2015 - 08/2017] Refer to INITIALIZATION [08/2017 - ] ).
