Components [08/2015 - ]

Fig 1: Camshaft Position Sensor Replacement Components With Torque Specifications (1 Of 2)
GTY600908Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

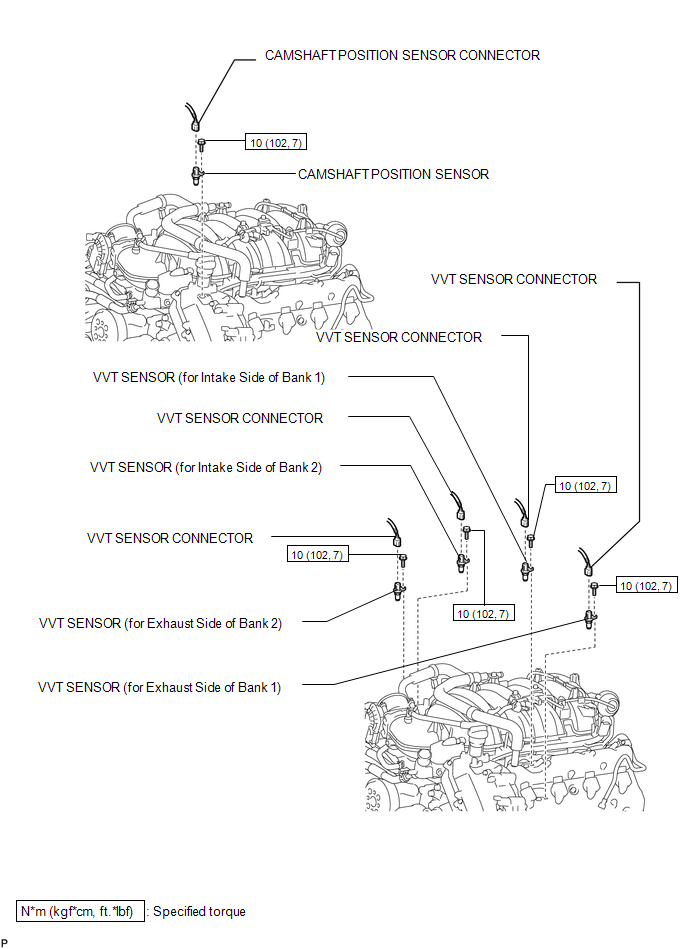

Fig 2: Camshaft Position Sensor Replacement Components With Torque Specifications (2 Of 2)
GTY543155Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
