Components [08/2015 - ]

Fig 1: Engine Coolant Temperature Sensor Replacement Components With Torque Specifications (1 Of 2)
GTY573953Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

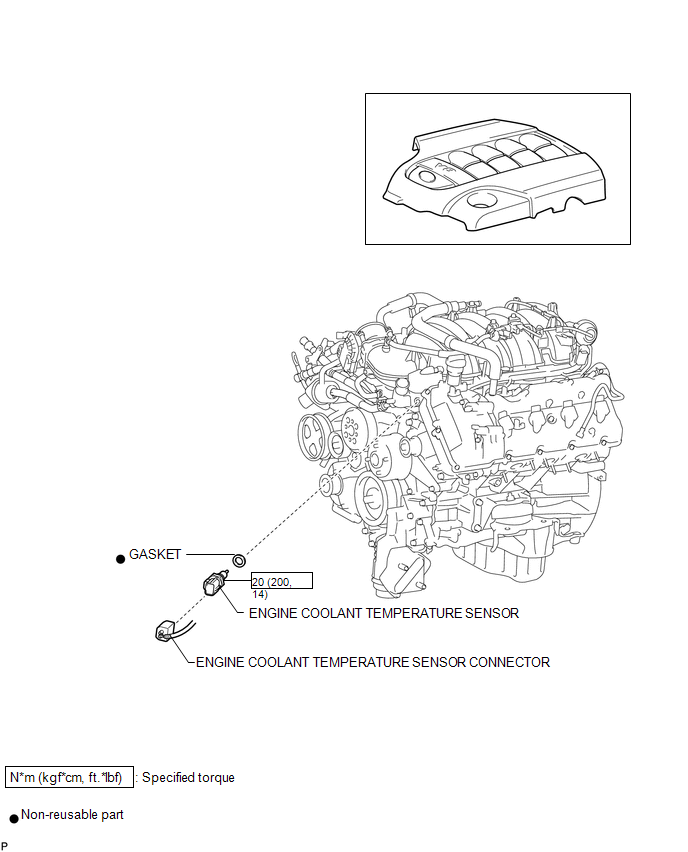

Fig 2: Engine Coolant Temperature Sensor Replacement Components With Torque Specifications (2 Of 2)
GTY555777Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
