Components [08/2015 - ]

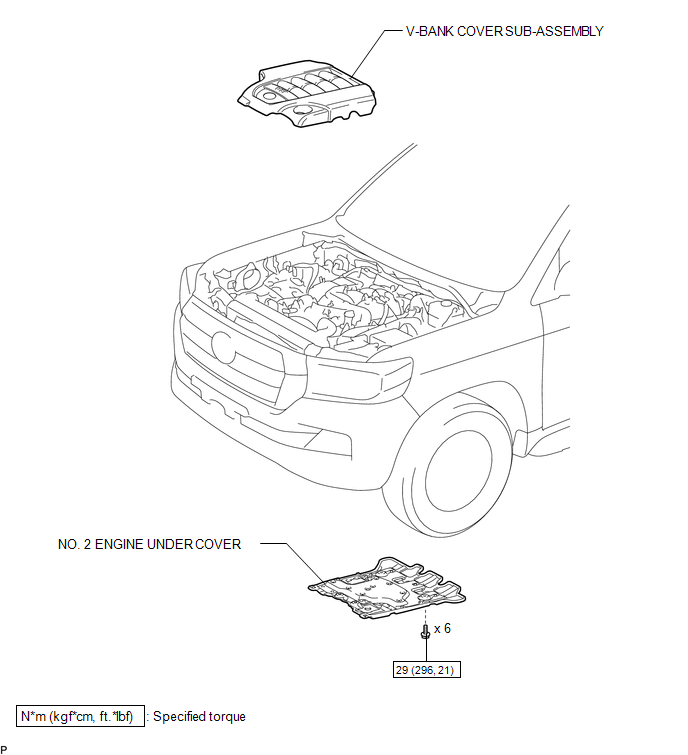

Fig 1: Ignition Coil And Spark Plug Replacement Components With Torque Specifications (1 Of 3)
GTY553333Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

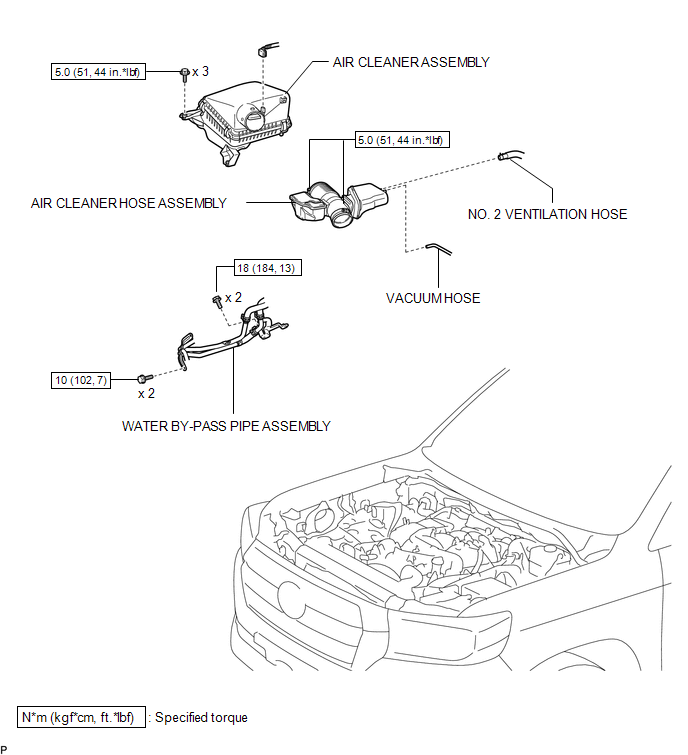

Fig 2: Ignition Coil And Spark Plug Replacement Components With Torque Specifications (2 Of 3)
GTY563012Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 3: Identifying Ignition Coil And Spark Plug Replacement Components With Torque Specifications (3 Of 3)
GTY237793Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
