Components [08/2015 - ]

Fig 1: Throttle Body Replacement Components With Torque Specifications (1 Of 2)
GTY573952Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

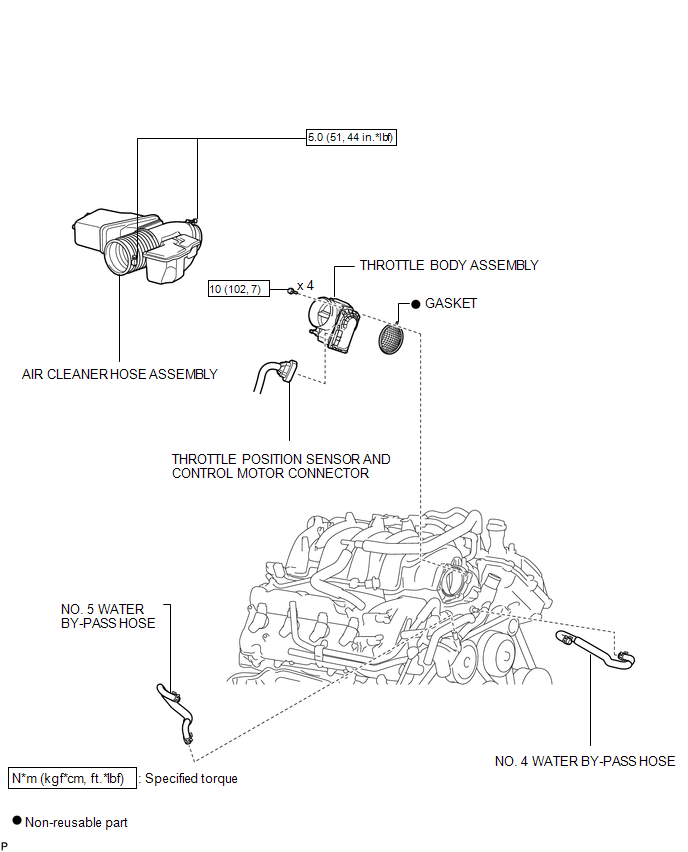

Fig 2: Throttle Body Replacement Components With Torque Specifications (2 Of 2)
GTY540843Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
