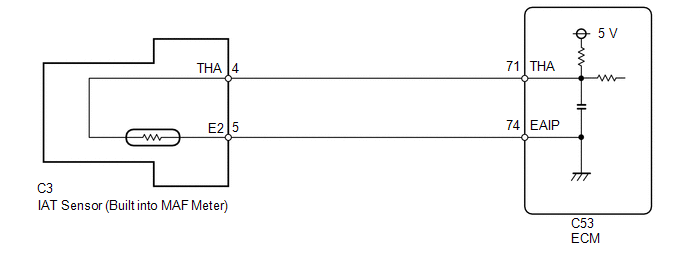

DTC P0112: Intake Air Temperature Circuit Low Input; DTC P0113: Intake Air Temperature Circuit High Input [08/2015 - ]: Wiring Diagram

GTY543093Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
