Removal [08/2015 - ]: Procedure
- PLACE FRONT WHEELS FACING STRAIGHT AHEAD
- PRECAUTION NOTE:
After turning the ignition switch off, waiting time may be required before disconnecting the cable from the battery terminal. Therefore, make sure to read the disconnecting the cable from the battery terminal notice before proceeding with work (Refer to PRECAUTION [08/2015 - ] ).
- DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
- Disable the AUTO TILT AWAY function by changing the customize parameter (Refer to CUSTOMIZE PARAMETERS [08/2015 - 08/2017]
, or refer to CUSTOMIZE PARAMETERS [08/2017 - ]
).NOTE:
Record the current customize parameter setting (whether the AUTO TILT AWAY function is enabled or disabled) in order to restore the current setting after finishing the operation.
HINT:
Performing the above operation causes the AUTO TILT AWAY function to be disabled when the engine switch is turned off.
- Turn the engine switch on (IG). Operate the tilt and telescopic switch to fully extend and lower the steering column assembly.
- Turn the engine switch off and disconnect the cable from the negative (-) battery terminal.WARNING:
Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.
NOTE:When disconnecting the cable, some systems need to be initialized after the cable is reconnected (Refer to INITIALIZATION [08/2015 - 08/2017] , or refer to INITIALIZATION [08/2017 - ] ).
- Disable the AUTO TILT AWAY function by changing the customize parameter (Refer to CUSTOMIZE PARAMETERS [08/2015 - 08/2017]
, or refer to CUSTOMIZE PARAMETERS [08/2017 - ]
).
- REMOVE FRONT WHEEL
- REMOVE STEERING WHEEL ASSEMBLY
(Refer to REMOVAL [08/2015 - ] )

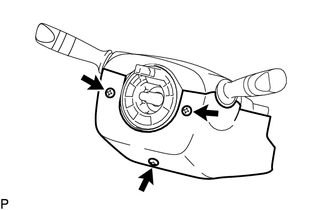

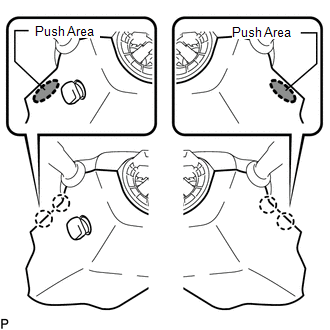

- REMOVE LOWER STEERING COLUMN COVER

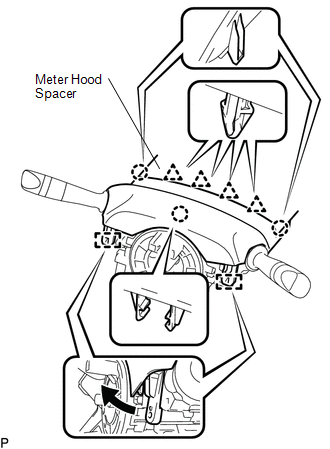

- REMOVE UPPER STEERING COLUMN COVER

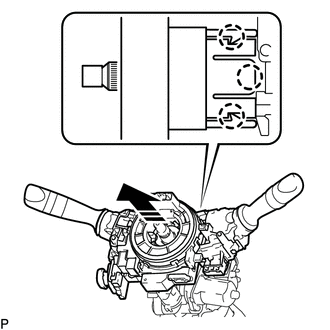

- REMOVE COMBINATION SWITCH ASSEMBLY WITH SPIRAL CABLE SUBASSEMBLY
- REMOVE LOWER NO. 1 INSTRUMENT PANEL AIRBAG ASSEMBLY
(Refer to REMOVAL [08/2015 - ] )

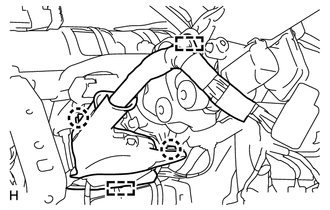

- DISCONNECT WIRE HARNESS PROTECTOR AND WIRE HARNESS
- REMOVE NO. 3 AIR DUCT SUBASSEMBLY
Refer to PROCEDURE - Step 13

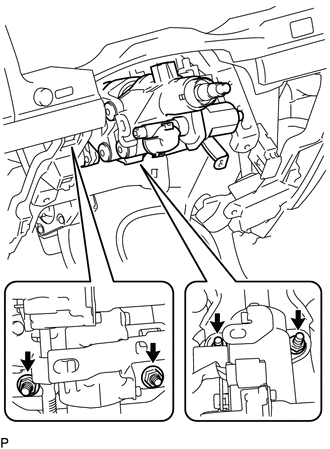

- REMOVE STEERING COLUMN ASSEMBLY
- REMOVE STEERING ACTUATOR ASSEMBLY
(Refer to PROCEDURE - Step 2 )

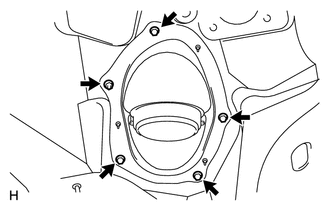

- REMOVE STEERING COLUMN HOLE COVER SUBASSEMBLY

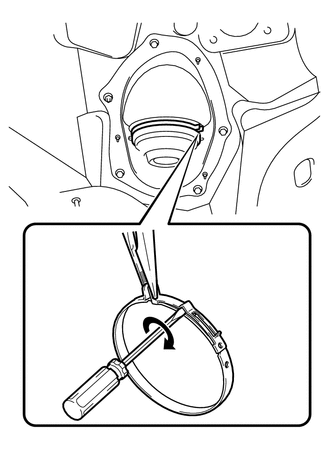

- REMOVE NO. 2 STEERING INTERMEDIATE SHAFT
- Loosen the bolt and remove the No. 2 intermediate shaft from the power steering link assembly.NOTE:
It is possible to install the intermediate shaft to the same position it was removed from without placing matchmarks due to the dust cover part labeled A. Therefore, do not remove the dust cover from the steering link.
HINT:
If the dust cover is removed/installed or replaced, place matchmarks on the dust cover and steering link.
- Loosen the bolt and remove the No. 2 intermediate shaft from the power steering link assembly.
