Installation [11/2020 - 12/2022]: Procedure

Refer to PROCEDURE - Step 1

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

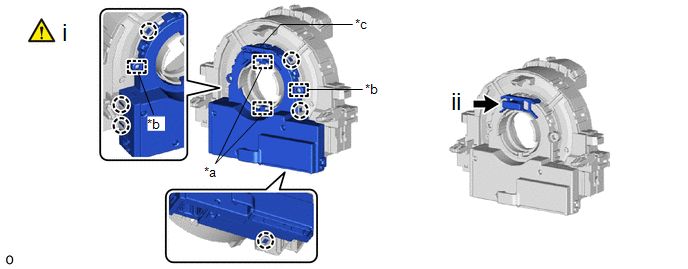

   *a	Guide	*b	Pin
   *c	Lock Pin	-	-

   1. Align the 2 pins and 2 guides, and engage the 6 claws to install the steering sensor to the spiral cable sub-assembly.
      NOTE:

      • Do not remove the lock pin before the steering sensor is installed to the spiral cable sub-assembly.
      • Do not damage the claws or pins of the spiral cable sub-assembly or guides of the steering sensor.
      • The spiral cable sub-assembly can be rotated up to 30° even when the interlock is engaged. Therefore, make sure that both guides are aligned properly when installing the steering sensor to the spiral cable sub-assembly.
   2. Remove the lock pin from the steering sensor.

Refer to PROCEDURE - Step 3

Refer to PROCEDURE - Step 4

Refer to ADJUSTMENT [11/2020 - ]

Refer to INSTALLATION [11/2020 - 12/2022]

Refer to UPDATE ECU SECURITY KEY [11/2020 - ]

Refer to OPERATION CHECK [11/2020 - ]

Refer to PROCEDURE - Step 5

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:  Return the customization settings to the settings before changing them.

1. Perform the customization settings.

   Refer to CUSTOMIZE PARAMETERS [11/2020 - ]

Refer to WORK PROCEDURE [11/2020 - 12/2022]

HINT:

When disconnecting and reconnecting the battery, there is an automatic learning function that completes learning when the respective system is used.

Refer to AUTOMATIC LEARNING CHART [11/2020 - 11/2021] , or refer to AUTOMATIC LEARNING CHART [11/2021 - 12/2023]
