Removal [11/2020 - ]: Procedure

REMOVE FRONT DOOR SCUFF PLATE LH
Refer to PROCEDURE - Step 6 [11/2020 - 11/2021] , or refer to PROCEDURE - Step 6 [11/2021 - 12/2022] , or refer to PROCEDURE - Step 6 [12/2022 - 12/2023] , or refer to PROCEDURE - Step 6 [12/2023 - ]
REMOVE INSTRUMENT CLUSTER FINISH PANEL ORNAMENT
Refer to PROCEDURE - Step 8 [11/2020 - 11/2021] , or refer to PROCEDURE - Step 8 [11/2021 - 12/2022] , or refer to PROCEDURE - Step 8 [12/2022 - 12/2023] , or refer to PROCEDURE - Step 8 [12/2023 - ]

REMOVE NO. 1 INSTRUMENT SIDE PANEL

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

REMOVE NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
Refer to PROCEDURE - Step 8 [11/2020 - 11/2021] , or refer to PROCEDURE - Step 8 [11/2021 - 12/2022] , or refer to PROCEDURE - Step 8 [12/2022 - 12/2023] , or refer to PROCEDURE - Step 8 [12/2023 - ]
REMOVE LOWER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY
Refer to PROCEDURE - Step 9 [11/2020 - 11/2021] , or refer to PROCEDURE - Step 9 [11/2021 - 12/2022] , or refer to PROCEDURE - Step 9 [12/2022 - 12/2023] , or refer to PROCEDURE - Step 9 [12/2023 - ]

REMOVE VSC OFF SWITCH

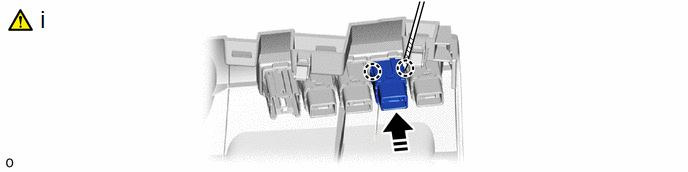

Remove in this Direction

Using a screwdriver with its tip wrapped with protective tape, disengage the 2 claws and remove the VSC OFF switch from the lower instrument panel finish panel sub-assembly as shown in the illustration.
