Components [11/2015 - 12/2018]

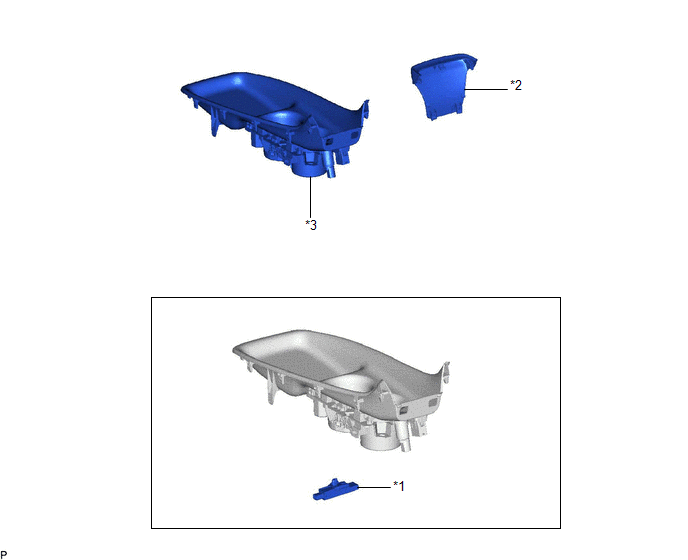

Fig 1: Electrical Key Oscillator (For Console Box) Replacement Components
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1
NO. 1 INDOOR ELECTRICAL KEY ANTENNA ASSEMBLY
*2
NO. 1 UPPER BOX PLATE
*3
UPPER CONSOLE PANEL SUB-ASSEMBLY
-
-
