Microphone Circuit between Microphone and Navigation Receiver Assembly [11/2015 - ]: Wiring Diagram

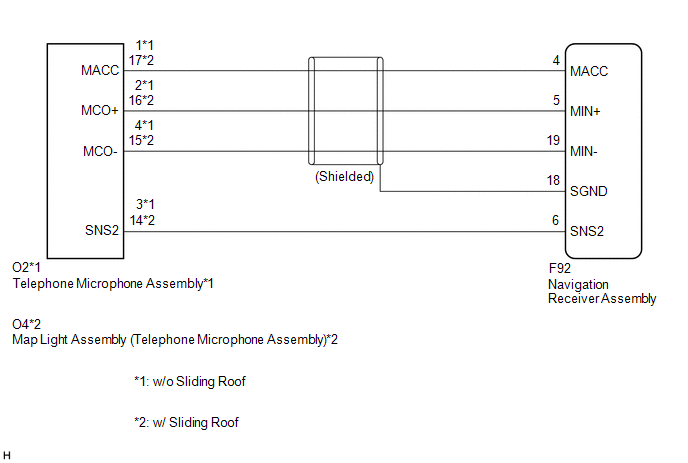

w/o Manual (SOS) Switch

GTY546219Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

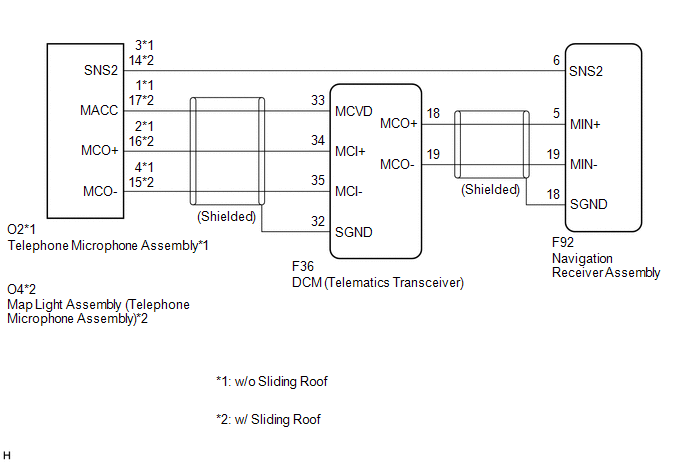

w/ Manual (SOS) Switch

GTY553038Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
