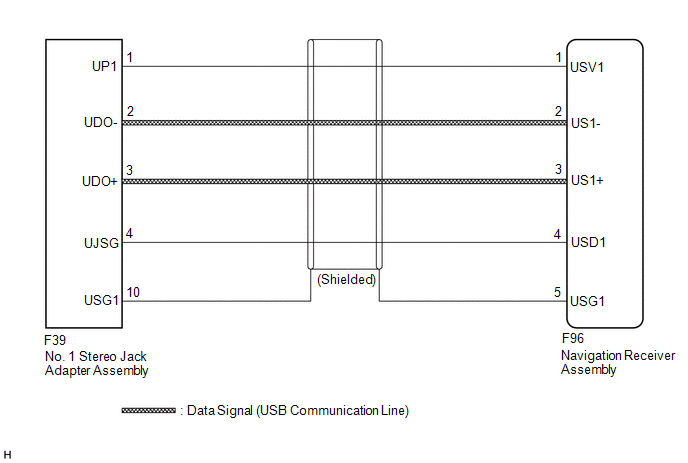

USB Audio System Recognition/Play Error [11/2015 - 08/2016]: Wiring Diagram

GTY724773Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
