Components [11/2015 - ]

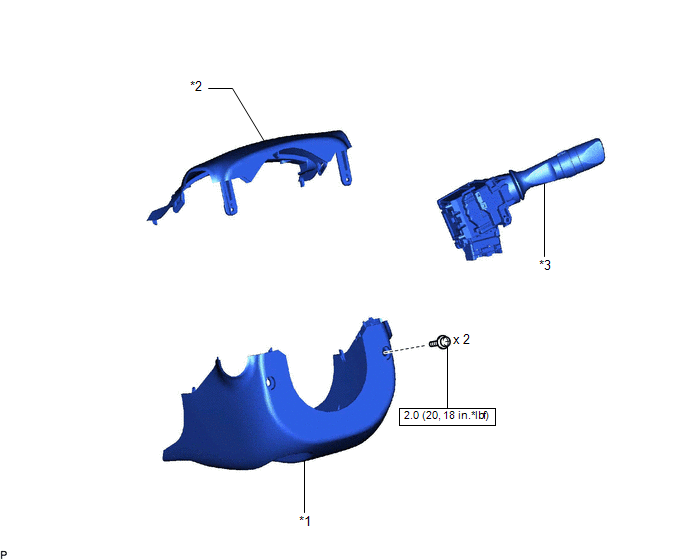

Fig 1: Wiper Switch Replacement Components With Torque Specifications
GTY581020Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 LOWER STEERING COLUMN COVER SUB-ASSEMBLY *2 UPPER STEERING COLUMN COVER
*3 WINDSHIELD WIPER SWITCH ASSEMBLY - -
N.m (kgf.cm, ft./lbf): Specified torque - -
