DTC C1413: Front Speed Sensor RH Circuit Output; DTC C1414: Front Speed Sensor LH Circuit Output [11/2015 - 12/2018]: Description

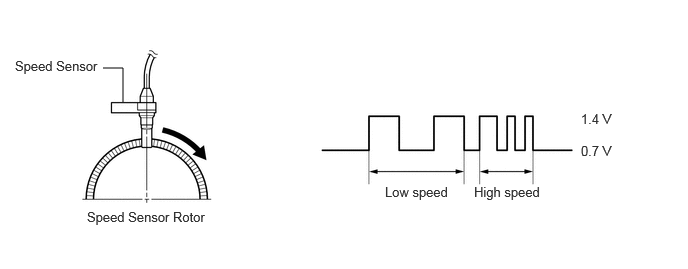

Each speed sensor detects the wheel speed and sends the signals to the skid control ECU (brake booster with master cylinder assembly). These signals are used for ABS control.
HINT:
The output voltage values shown below are for when the vehicle wire harnesses are connected to the skid control ECU (brake booster with master cylinder assembly) and the speed sensors.
| DTC No. | Detection Item | INF Code | DTC Detection Condition | Trouble Area | Note |
|---|---|---|---|---|---|
| C1413 | Front Speed Sensor RH Circuit Output | 504 541 |
|
|
ABS DTC |
| C1414 | Front Speed Sensor LH Circuit Output | 514 542 |
|
|
ABS DTC |
DTC DETECTION CONDITIONS: C1413 INF CODE: 541
| Vehicle Condition | |||
|---|---|---|---|
| Pattern 1 | Pattern 2 | ||
| Diagnosis Condition | At a vehicle speed of 20 km/h (12 mph) or more. | ◦ | - |
| At a vehicle speed of 10 km/h (6 mph) or more. | - | ◦ | |
| Malfunction Status | Noise occurs in the sensor signals of a malfunctioning wheel. | ◦ | - |
| Noise occurs once per rotor rotation. | - | ◦ | |
| Detection Time | Detected 75 times or more within 5 seconds | 15 seconds or more | |
| Number of Trips | 1 trip | 1 trip | |
HINT:
DTC will be output when conditions for either of the patterns in the table above are met.
DTC DETECTION CONDITIONS: C1414 INF CODE: 542
| Vehicle Condition | |||
|---|---|---|---|
| Pattern 1 | Pattern 2 | ||
| Diagnosis Condition | At a vehicle speed of 20 km/h (12 mph) or more. | ◦ | - |
| At a vehicle speed of 10 km/h (6 mph) or more. | - | ◦ | |
| Malfunction Status | Noise occurs in the sensor signals of a malfunctioning wheel. | ◦ | - |
| Noise occurs once per rotor rotation. | - | ◦ | |
| Detection Time | Detected 75 times or more within 5 seconds | 15 seconds or more | |
| Number of Trips | 1 trip | 1 trip | |
HINT:
DTC will be output when conditions for either of the patterns in the table above are met.
