Component Operating Range
| All of the following conditions are met | - |
| Brake pedal stroke sensor assembly fail | Not detected |
| Reaction force pressure sensor fail | Not detected |
| Brake-by-wire controlled mode | On |
| Brake pedal operation | On |

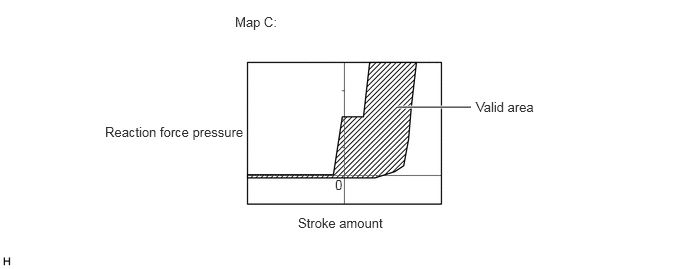

| Ratio of the output value of the brake pedal stroke sensor assembly and reaction force pressure sensor | Within the valid area of the Map C |
