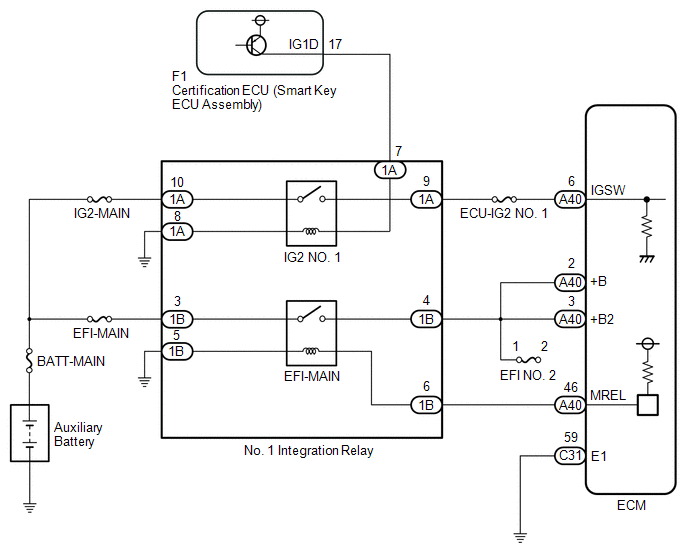

ECM Power Source Circuit [11/2015 - 07/2020]: Wiring Diagram

GTY590949

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
