Front Camera System - Diagnostics - Introduction
>>
Front Camera System
>>
System Diagram [07/2020 - ]
>>
System Diagram [07/2020 - ]
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

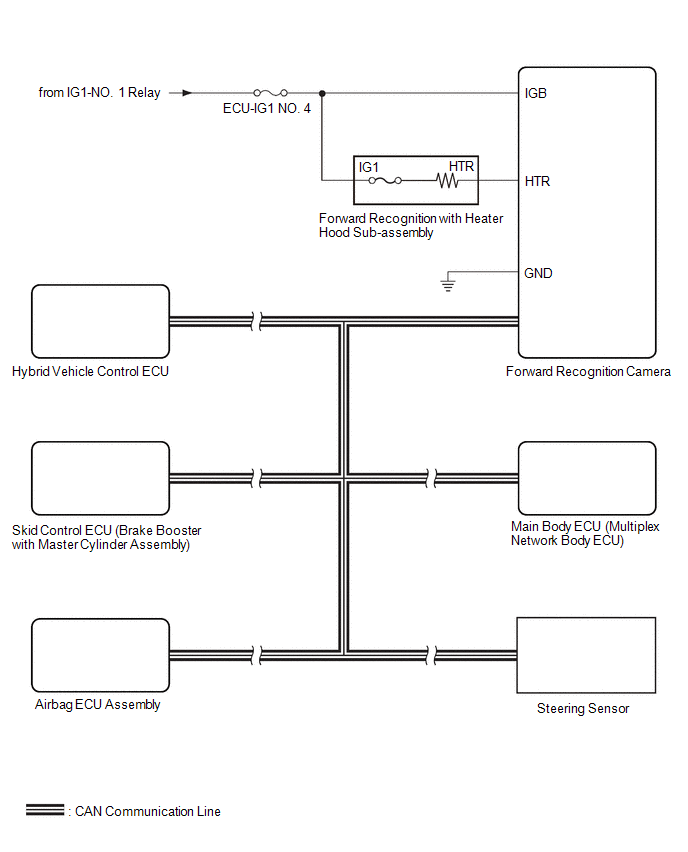

System Diagram [07/2020 - ]
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
