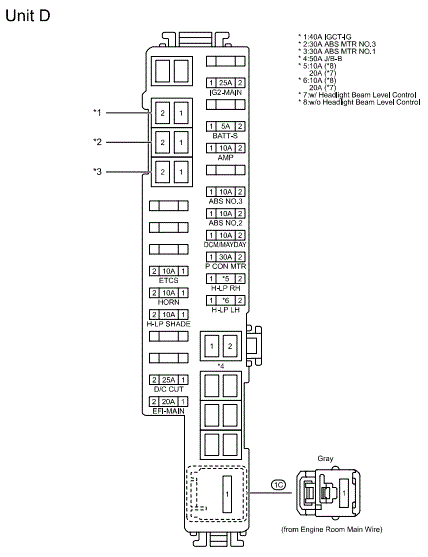

Unit D

G00673181Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fuse System
5A BATT-S Cruise Control (Lithium-Ion Battery)
Cruise Control (Nickel Metal Hydride Battery)
Hybrid System (Lithium-Ion Battery)
Hybrid System (Nickel Metal Hydride Battery)
Shift Control System (Lithium-Ion Battery)
Vehicle Proximity Notification System (Before Aug. 2019 Production)
Vehicle Proximity Notification System (Before Aug. 2019 Production) (Nickel Metal Hydride Battery).
10A ABS NO. 2 ABS
TRAC
VSC
10A ABS NO.3 ABS
TRAC
VSC
10A AMP Audio System (Separate Type Amplifier)
Navigation System (Separate Type Amplifier)
Rear View Monitor System (Separate Type Amplifier)
10A DCM/MAYDAY Safety Connect
Cruise Control (Lithium-Ion Battery)
Cruise Control (Nickel Metal Hydride Battery)
Engine Control
Fuel Lid Opener
Hybrid System (Lithium-Ion Battery)
10A ECU-IG2 NO.1 Hybrid System (Nickel Metal Hydride Battery)
Shift Control System (Lithium-Ion Battery)
Shift Control System (Nickel Metal Hydride Battery)
Vehicle Proximity Notification System (Before Aug. 2019 Production) (Lithium-Ion Battery)
Vehicle Proximity Notification System (Before Aug. 2019 Production) (Nickel Metal Hydride Battery)
10A EFI NO.2 Air Conditioning
Cooling Fan
Engine Control
Fuel Lid Opener
10A EFI NO.3 Engine Control
Fuel Lid Opener
10A ETCS Engine Control
Fuel Lid Opener
10A FOG FR Front Fog Light
10A FUEL OPN Engine Control
Fuel Lid Opener
10A H-LP LH Adaptive Front-Lighting System
Automatic Light Control
Back Door Opener
Headlight
Headlight Beam Level Control
Immobiliser System
Light Auto Turn Off System
Smart Key System
Starting
Steering Lock
Wireless Door Lock Control
10A H-LP RH Adaptive Front-Lighting System
Automatic Light Control
Back Door Opener
Headlight
Headlight Beam Level Control
Immobiliser System
Light Auto Turn Off System
Smart Key System
Starting
Steering Lock
Wireless Door Lock Control
10A H-LP SHADE Adaptive Front-Lighting System
Headlight
Headlight Beam Level Control
10A HORN Back Door Opener
Horn
Immobiliser System
Smart Key System
Starting
Steering Lock
Wireless Door Lock Control
Cruise Control (Lithium-Ion Battery)
Cruise Control (Nickel Metal Hydride Battery)
Dynamic Radar Cruise Control
Hybrid System (Lithium-Ion Battery)
Hybrid System (Nickel Metal Hydride Battery)
10A IGCT NO.2 Shift Control System (Lithium-Ion Battery)
Shift Control System (Nickel Metal Hydride Battery)
Vehicle Proximity Notification System (Before Aug. 2019 Production) (Lithium-Ion Battery)
Vehicle Proximity Notification System (Before Aug. 2019 Production) (Nickel Metal Hydride Battery)
10A INV W/PMP Cruise Control (Lithium-Ion Battery)
Cruise Control (Nickel Metal Hydride Battery)
Hybrid System (Lithium-Ion Battery)
Hybrid System (Nickel Metal Hydride Battery)
Shift Control System (Lithium-Ion Battery)
Shift Control System (Nickel Metal Hydride Battery)
Vehicle Proximity Notification System (Before Aug. 2019 Production) (Lithium-Ion Battery)
Vehicle Proximity Notification System (Before Aug. 2019 Production) (Nickel Metal Hydride Battery)
10A PCU BUB/PCU RR Cruise Control (Lithium-Ion Battery)
Cruise Control (Nickel Metal Hydride Battery)
Hybrid System (Lithium-Ion Battery)
Hybrid System (Nickel Metal Hydride Battery)
Shift Control System (Lithium-Ion Battery)
Shift Control System (Nickel Metal Hydride Battery)
Vehicle Proximity Notification System (Before Aug. 2019 Production) (Lithium-Ion Battery)
Vehicle Proximity Notification System (Before Aug. 2019 Production) (Nickel Metal Hydride Battery)
10A PCU FR Cruise Control (Lithium-Ion Battery)
Cruise Control (Nickel Metal Hydride Battery)
Hybrid System (Lithium-Ion Battery)
Hybrid System (Nickel Metal Hydride Battery)
Shift Control System (Lithium-Ion Battery)
Shift Control System (Nickel Metal Hydride Battery)
Vehicle Proximity Notification System (Before Aug. 2019 Production) (Lithium-Ion Battery)
Vehicle Proximity Notification System (Before Aug. 2019 Production) (Nickel Metal Hydride Battery)
10A PCU RR Cruise Control (Lithium-Ion Battery)
Cruise Control (Nickel Metal Hydride Batterry)
Hybrid System (Lithium-Ion Battery)
Hybrid System (Nickel Metal Hydride Battery)
Shift Control System (Lithium-Ion Battery)
Shift Control System (Nickel Metal Hydride Battery)
Vehicle Proximity Notification System (Before Aug. 2019 Production) (Lithium-Ion Battery)
Vehicle Proximity Notification System (Before Aug. 2019 Production) (Nickel Metal Hydride Battery)
10A PM-IGCT Cruise Control (Lithium-Ion Battery)
Cruise Control (Nickel Metal Hydride Batterry)
Dynamic Radar Cruise Control
Hybrid System (Lithium-Ion Battery)
Hybrid System (Nickel Metal Hydride Battery)
Shift Control System (Lithium-Ion Battery)
Shift Control System (Nickel Metal Hydride Battery)
Vehicle Proximity Notification System (Before Aug. 2019 Production) (Lithium-Ion Battery)
Vehicle Proximity Notification System (Before Aug. 2019 Production) (Nickel Metal Hydride Battery)
10A S/HTR F/L Seat Heater (Before Dec. 2018 Production)
Seat Heater (From Dec. 2018 Production)
10A S/HTR F/R Seat Heater (Before Dec. 2018 Production)
Seat Heater (From Dec. 2018 Production )
10A STRG HTR Heated Steering Wheel System
15A BATT FAN Cruise Control (Lithium-Ion Battery)
Cruise Control (Nickel Metal Hydride Battery)
Hybrid System (Lithium-Ion Battery)
Hybrid System (Nickel Metal Hydride Battery)
Shift Control System (Lithium-Ion Battery)
Shift Control System (Nickel Metal Hydride Battery)
Vehicle Proximity Notification System (Before Aug. 2019 Production) (Lithium-Ion Battery)
Vehicle Proximity Notification System (Before Aug. 2019 Production) (Nickel Metal Hydride Battery)
15A INJ Combination Meter
Engine Control
Fuel Lid Opener
Ignition
15A P/OUTLET NO.2 Power Outlet
20A EFI-MAIN Air Conditioning
Engine Control
Fuel Lid Opener
20A H-LP LH Adaptive Front-Lighting System
Automatic Light Control
Back Door Opener
Headlight
Headlight Beam Level Control
Immobiliser System
Light Auto Turn Off System
Smart Key System
Starting
Steering Lock
Wireless Door Lock Control
20A H-LP RH Adaptive Front-Lighting System
Automatic Light Control
Back Door Opener
Headlight
Headlight Beam Level Control
Immobiliser System
Light Auto Turn Off System
Smart Key System
Starting
Steering Lock
Wireless Door Lock Control
20A S/HTR-MAIN Heated Steering Wheel System
Seat Heater (Before Dec. 2018 Production)
Seat Heater (From Dec. 2018 Production)
25A D/C CUT Power Source
25A ENG W/PMP Air Conditioning
Engine Control
Fuel Lid Opener
25A IG2-MAIN Power Source
30A ABS MTR NO.1 ABS
TRAC
VSC
30A ABS MTR NO.2 ABS
TRAC
VSC
30A ABS MTR NO.3 ABS
TRAC
VSC
30A ABS-MAIN ABS
TRAC
VSC
30A FAN NO.1 Cooling Fan
30A FAN NO.2 Cooling Fan
30A P CON MTR Cruise Control (Lithium-Ion Battery)
Cruise Control (Nickel Metal Hydride Battery)
Hybrid System (Lithium-Ion Battery)
Hybrid System (Nickel Metal Hydride Battery)
Shift Control System (Lithium-Ion Battery)
Shift Control System (Nickel Metal Hydride Battery)
Vehicle Proximity Notification System (Before Aug. 2019 Production) (Lithium-Ion Battery)
Vehicle Proximity Notification System (Before Aug. 2019 Production) (Nickel Metal Hydride Battery)
30A WIPER Front Wiper and Washer (W/ Auto Wiper System)
Front Wiper and Washer (W/O Auto Wiper System)
40A HTR Air Conditioning
40A IGCT-IG Cruise Control (Lithium-Ion Battery)
Cruise Control (Nickel Metal Hydride Battery)
Dynamic Radar Cruise Control
Hybrid System (Lithium-Ion Battery)
Hybrid System (Nickel Metal Hydride Battery)
Shift Control System (Lithium-Ion Battery)
Shift Control System (Nickel Metal Hydride Battery)
Vehicle Proximity Notification System (Before Aug. 2019 Production) (Lithium-Ion Battery)
Vehicle Proximity Notification System (Before Aug. 2019 Production) (Nickel Metal Hydride Battery)
50A DEF Mirror Heater
Rear Window Defogger
50A J/B-B Power Source
