Components [11/2015 - ]

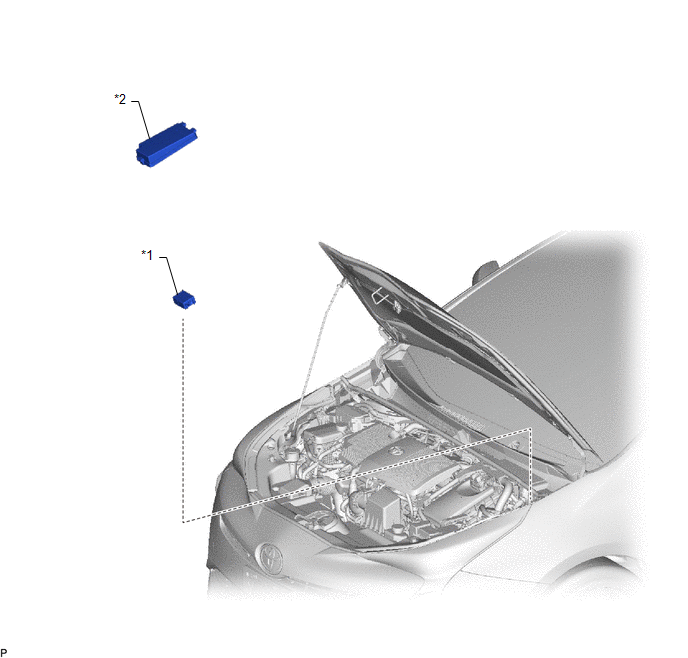

Fig 1: Integration Relay Replacement Components
GTY578791Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 NO. 1 INTEGRATION RELAY *2 NO. 1 RELAY BLOCK COVER
