Components [11/2015 - 11/2017]

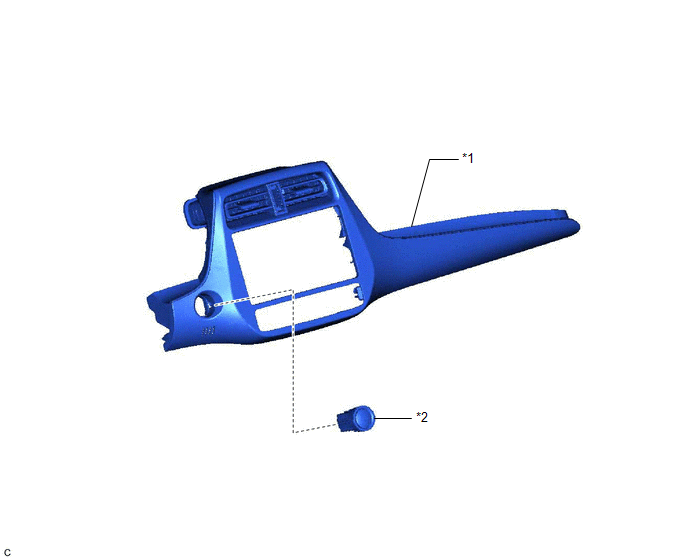

Fig 1: Power Switch Replacement Components
GTY586805Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout  Description  Callout  Description
*1 CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY *2 POWER SWITCH
