Components [11/2017 - 08/2019]

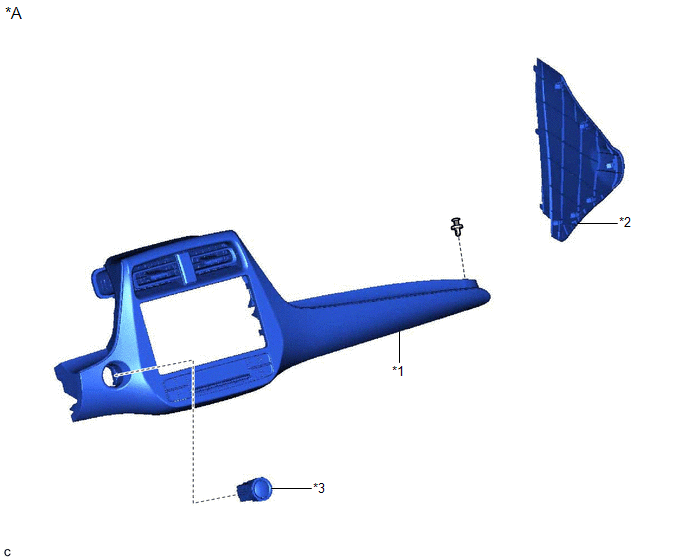

Fig 1: Power Switch Replacement Components (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*A	except 11.6 Inch Display	-	-
*1	CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY	*2	INSTRUMENT PANEL FINISH PANEL END RH
*3	POWER SWITCH	-	-

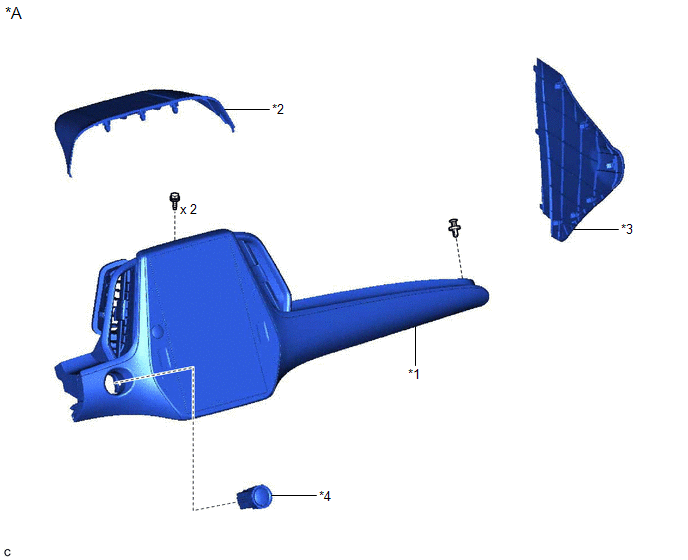

Fig 2: Power Switch Replacement Components (2 Of 2)

Callout	Description	Callout	Description
*A	for 11.6 Inch Display	-	-
*1	CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY WITH NAVIGATION RECEIVER ASSEMBLY	*2	CENTER INSTRUMENT CLUSTER FINISH PANEL UPPER
*3	INSTRUMENT PANEL FINISH PANEL END RH	*4	POWER SWITCH
