Components [11/2015 - ]

Fig 1: Air Fuel Ratio Sensor Replacement Components With Torque Specifications (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	COWL BODY MOUNTING REINFORCEMENT LH	*2	NO. 1 HEATER AIR DUCT SPLASH SHIELD SEAL
*3	OUTER COWL TOP PANEL SUB-ASSEMBLY	*4	WATER GUARD PLATE LH
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping":N.m (kgf.cm, ft./lbf)		N.m (kgf.cm, ft./lbf): Specified torque

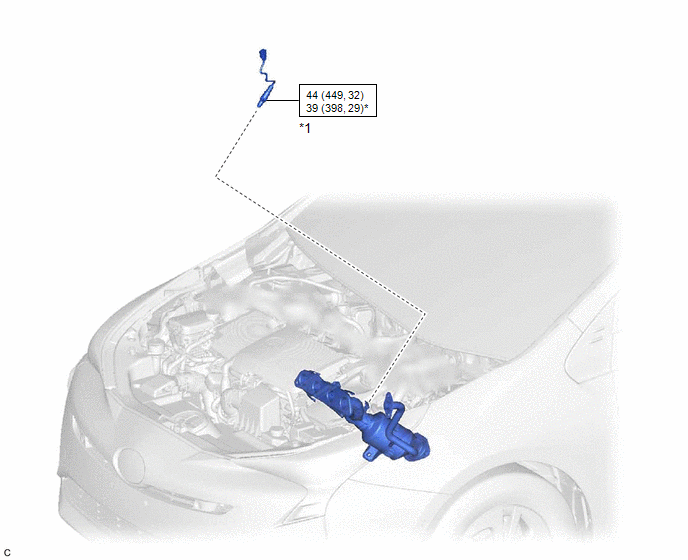

Fig 2: Air Fuel Ratio Sensor Replacement Components With Torque Specifications (2 Of 2)

Callout	Description	Callout	Description
*1	AIR FUEL RATIO SENSOR	-	-
	N.m (kgf.cm, ft./lbf): Specified torque	*	For use with SST
