Inspection [11/2015 - ]: Procedure
- INSPECT CRANKSHAFT POSITION SENSOR
- Measure the resistance according to the value(s) in the table below.

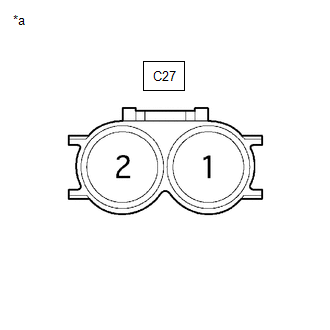

*a Component without harness connected
(Crankshaft Position Sensor)Standard Resistance
Click Location & Routing(C27)
Click Connector(C27)
Tester Connection Condition Specified Condition C27-1 - C27-2 Cold 1630 to 2740 Ω C27-1 - C27-2 Hot 2065 to 3225 Ω HINT:
In the table above, the terms "Cold" and "Hot" refer to the temperature of the coils. "Cold" means approximately -10 to 50°C (14 to 122°F). "Hot" means approximately 50 to 100°C (122 to 212°F).
If the result is not as specified, replace the crankshaft position sensor.
- Measure the resistance according to the value(s) in the table below.
