Removal [11/2015 - ]: Procedure

  1. REMOVE INTAKE MANIFOLD

    Refer to REMOVAL [11/2015 - ]

  2. REMOVE KNOCK CONTROL SENSOR

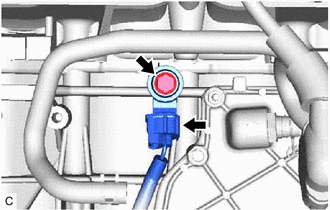

    1. Disconnect the knock control sensor connector.
      GTY550056Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the bolt and knock control sensor from the cylinder block sub-assembly.
      NOTE:

      If the knock control sensor has been struck or dropped, replace it.
