VC Output Circuit [11/2015 - 12/2018]: Wiring Diagram
For the circuit diagram of the ECM power source refer to the ECM power source circuit.
Refer to

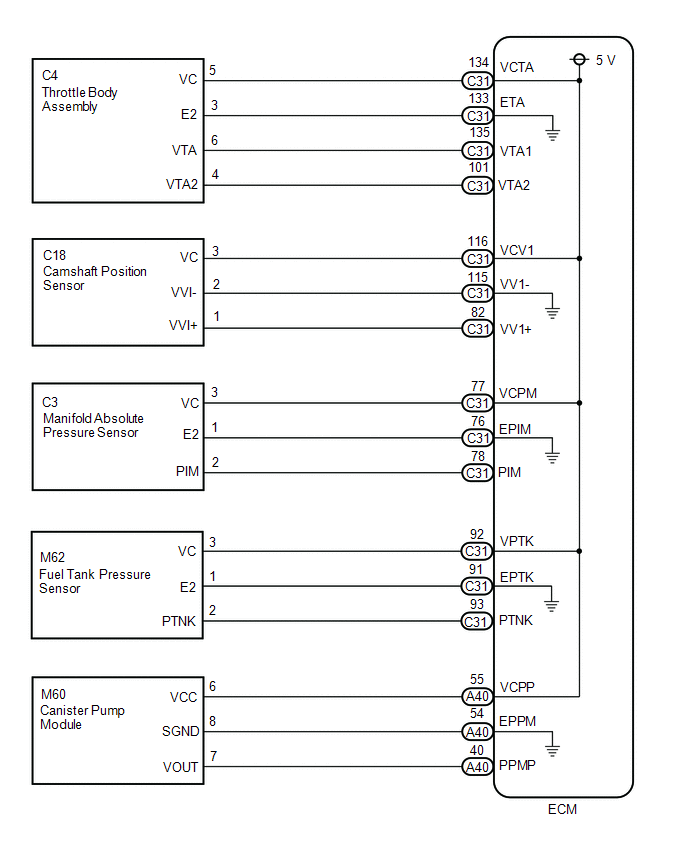

WIRING DIAGRAM
VC Output Circuit
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
