Components [04/2018 -]
WARNING: This page is about a different car, the 2022 Toyota Avalon, 2021 Toyota Avalon, 2020 Toyota Avalon, and 2019 Toyota Avalon. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| Callout |
Description |
Callout |
Description |

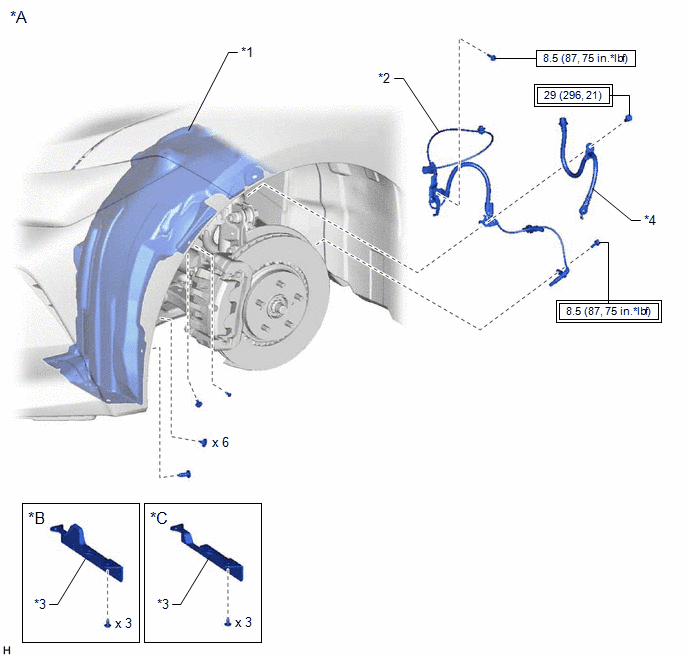

| *A |
w/o AVS |
*B |
for A25A-FXS |
| *C |
for 2GR-FKS |
- |
- |
| *1 |
FRONT FENDER LINER |
*2 |
FRONT SPEED SENSOR |
| *3 |
FRONT WHEEL OPENING EXTENSION PAD |
*4 |
FRONT FLEXIBLE HOSE |
|
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| Callout |
Description |
Callout |
Description |

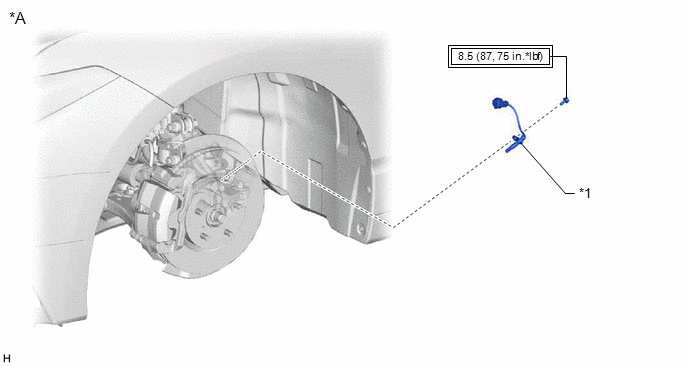

| *A |
w/ AVS |
- |
- |
| *1 |
FRONT SPEED SENSOR |
- |
- |
|
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) |
- |
- |
