Components [04/2018 -]

WARNING: This page is about a different car, the 2022 Toyota Avalon, 2021 Toyota Avalon, 2020 Toyota Avalon, and 2019 Toyota Avalon. However, it is still accessible from the selected car via links, so may be relevant.

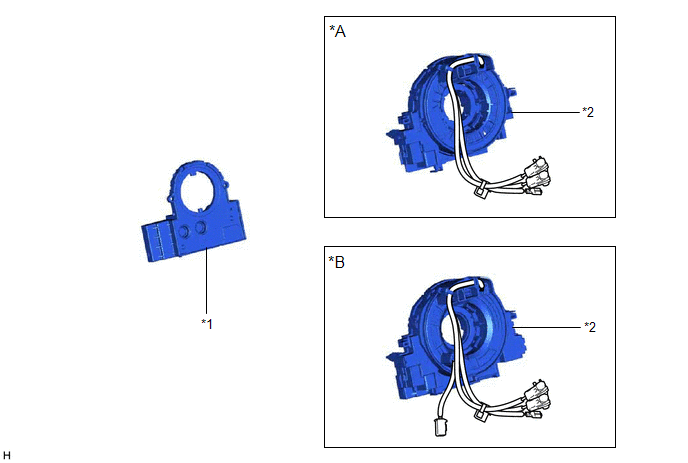

Fig 1: Steering Angle Sensor Replacement Components
GTY841127Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*A w/o Heated Steering Wheel System *B w/ Heated Steering Wheel System
*1 STEERING SENSOR *2 SPIRAL CABLE SUB-ASSEMBLY
