Components [04/2018 -]
WARNING: This page is about a different car, the 2022 Toyota Avalon, 2021 Toyota Avalon, 2020 Toyota Avalon, and 2019 Toyota Avalon. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

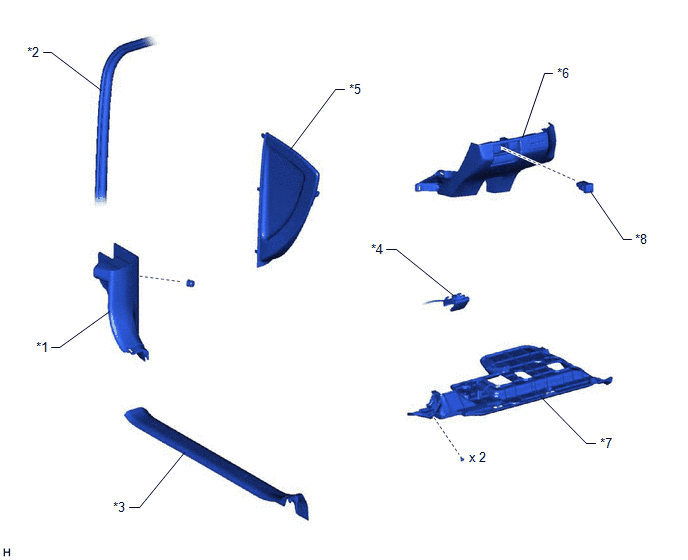

| *1 |
COWL SIDE TRIM SUB-ASSEMBLY LH |
*2 |
FRONT DOOR OPENING TRIM WEATHERSTRIP LH |
| *3 |
FRONT DOOR SCUFF PLATE LH |
*4 |
HOOD LOCK CONTROL LEVER SUB-ASSEMBLY |
| *5 |
INSTRUMENT SIDE PANEL LH |
*6 |
NO. 1 INSTRUMENT PANEL SUB-ASSEMBLY |
| *7 |
NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY |
*8 |
VSC OFF SWITCH |
