Installation [11/2015 - 12/2018]: Procedure

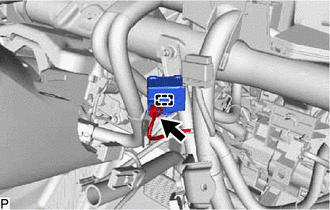

  1. INSTALL SKID CONTROL BUZZER
    1. Connect the connector.
      GTY603105Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Engage the clamp to install the skid control buzzer.
      NOTE:

      If the skid control buzzer has been struck or dropped, replace it with a new one.

      HINT:

      Make sure to install the skid control buzzer in the correct direction.

  2. INSTALL LOWER INSTRUMENT PANEL SUB-ASSEMBLY

    Refer to INSTALLATION [11/2015 - 11/2017] , or refer to INSTALLATION [11/2017 - 08/2019]
