Installation [11/2015 - ]: Procedure

  1. INSTALL STEERING PAD SWITCH ASSEMBLY

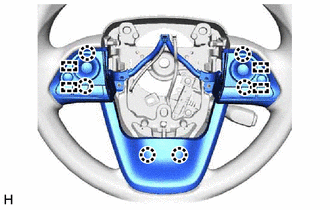

    1. Engage the 6 claws and 4 pins to install the steering pad switch assembly.
      GTY605606Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

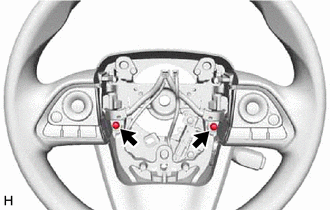

    2. Install the 2 screws.
      GTY574748Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 2.4 N.m (24 kgf.cm, 21 in./lbf)

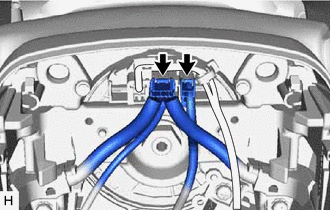

    3. Connect 2 connectors to the spiral cable with sensor sub-assembly.
      GTY574749Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL HORN BUTTON ASSEMBLY

    Refer to INSTALLATION [11/2015 - ]
